Wieland SMA 0313 Safety Magnet Switch
Wieland SMA 0313 Safety Magnet Switch
SKU:SAF-c77ca7
Ensure safety with the Wieland SMA 0313 Magnetic Switch. IP67 rated, manipulation-safe design with critical safety function compatibility.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Wieland SMA 0313 Safety Magnet Switch
$49.99
Quantity: 1
Claim Your Seller Account
Wieland SMA 0313 Safety Magnet Switch
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wieland SMA 0313 Safety Magnet Switch is a manipulation-safe round-shaped safety switch designed for critical safety functions. With normally open/normally closed contacts and an IP67 protection rating, this switch ensures reliable performance in demanding environments. It features a 3m cable for flexible installation and meets stringent safety standards like ISO 13849-1 Category 4, IEC 62061 SILCL 3, and more, making it ideal for industrial and institutional applications.
Product Specifications
Classification Eclass 81 Classification
27270105
Classification Etim 40 Classification
EC002544
Classification Etim 50 Classification
EC002544
Classification Etim 60 Classification
EC002544
Classification Etim 70 Classification
EC002544

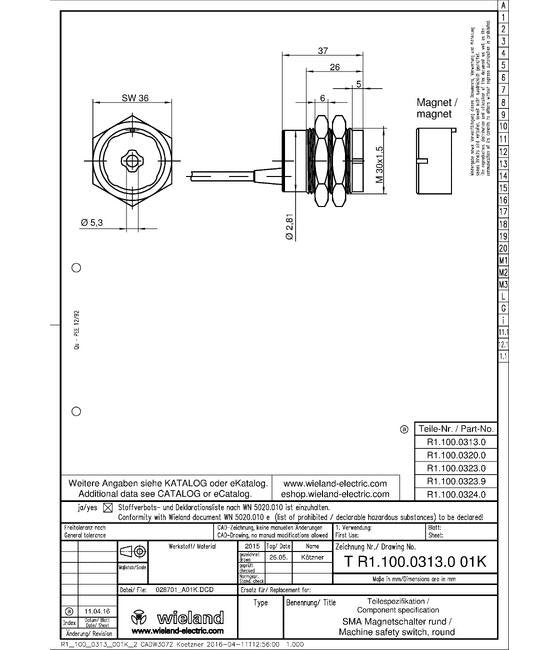

Dimensions Diameter Of Sensor
30 mm
Dimensions Length Of Sensor
32 mm
General Cable Length
3 m
General Construction Type Housing
Cuboid
General Crossshort Circuit Identification Possible
Yes
General Degree Of Protection Ip
IP67
General Housing Material
Plastic
General Number Of Protected Contact Energized Outputs
2
General Protected Switch Distance Off
17 mm
General Suited For Safety Functions
Yes
General Type Of Actuation
Magnet
General Type Of Electric Connection
Cable
Other Number Of Protected Semiconductor Outputs
0
Other Type Of Switch Output
Other
Other Voltage Type
Direct Current (DC)
Output Circuit Maximum Output Current
200 mA
Output Circuit Maximum Rated Supply Voltage At Direct Current Dc
48 V
Output Circuit Minimum Output Current
5 mA
Output Circuit Minimum Rated Supply Voltage At Direct Current Dc
5 V
Product Compliance Reach Svhc Conformity Status
Compliant
Safety Parameters Category Iso 13849 1
4
Safety Parameters Hot Functional Testing Hft
1
Safety Parameters Mission Time Tm
20Â a
Safety Parameters Pl Iso 13849 1
Level e
Safety Parameters Silcl Iec 62061
3
