Wieland SMA 0329 Safety Magnet Switch
Wieland SMA 0329 Safety Magnet Switch
SKU:SAF-0c229f
Enhance safety with the Wieland SMA 0329 Safety Magnet Switch. Manipulation safe, IP67 protection, and ISO/IEC compliance for reliable operation.
Regular price
$79.99
Regular price
Sale price
$79.99
Unit price
per
Initiate Order
Wieland SMA 0329 Safety Magnet Switch
$79.99
Quantity: 1
Claim Your Seller Account
Wieland SMA 0329 Safety Magnet Switch
$79.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

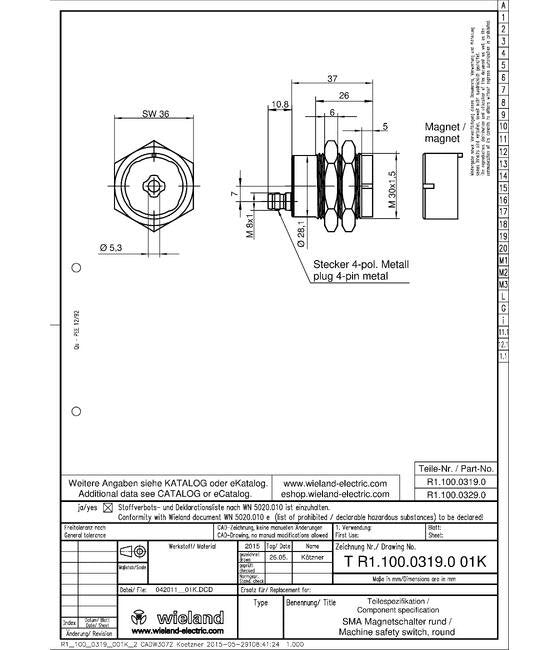

The Wieland SMA 0329 Safety Magnet Switch is a round-shaped safety switch designed to ensure manipulation-safe operation in diverse settings. With dimensions of M30x32mm and an IP67 protection rating, this switch offers reliability and durability. It features a normally open/normally open contact configuration, suitable for safety functions. Compliant with ISO 13849-1 Category 4, IEC 62061 SILCL 3, and other key standards, this magnet switch prioritizes safety and performance.
Product Specifications
Classification Etim 40 Classification
EC002544
Classification Etim 50 Classification
EC002544
Classification Etim 60 Classification
EC002544
Classification Etim 70 Classification
EC002544
Dimensions Diameter Of Sensor
30 mm
Dimensions Length Of Sensor
32 mm
General Construction Type Housing
Cuboid
General Crossshort Circuit Identification Possible
Yes
General Degree Of Protection Ip
IP67
General Housing Material
Plastic
General Number Of Protected Contact Energized Outputs
2
General Protected Switch Distance Off
20 mm
General Suited For Safety Functions
Yes
General Type Of Actuation
Magnet
General Type Of Electric Connection
Connector M8
Other Number Of Protected Semiconductor Outputs
0
Other Type Of Switch Output
Other
Other Voltage Type
Direct Current (DC)
Output Circuit Maximum Output Current
200 mA
Output Circuit Maximum Rated Supply Voltage At Direct Current Dc
48 V
Output Circuit Minimum Output Current
5 mA
Output Circuit Minimum Rated Supply Voltage At Direct Current Dc
5 V
Product Compliance Reach Svhc Conformity Status
Compliant
Safety Parameters Category Iso 13849 1
4
Safety Parameters Hot Functional Testing Hft
1
Safety Parameters Mission Time Tm
20Â a
Safety Parameters Pl Iso 13849 1
Level e
Safety Parameters Silcl Iec 62061
3
