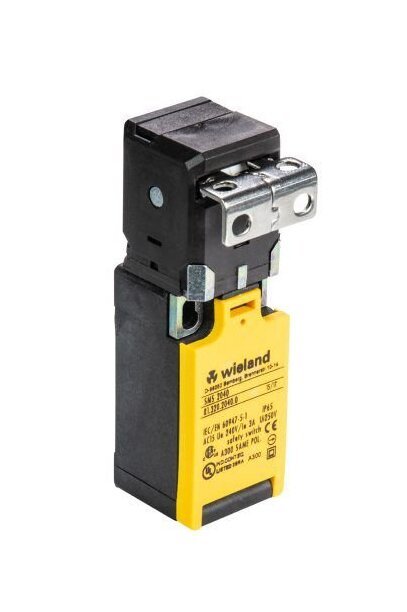

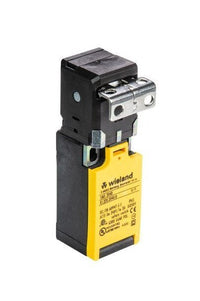

Wieland SMS 2020 Actuating Switch
Wieland SMS 2020 Actuating Switch
SKU:SAF-282151
Reliable Wieland SMS 2020 Actuating Switch for safety applications. Separated actuator, durable materials, and RoHS compliant.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Wieland SMS 2020 Actuating Switch
$29.99
Quantity: 1
Claim Your Seller Account
Wieland SMS 2020 Actuating Switch
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wieland SMS 2020 Actuating Switch is a top-of-the-line safety device designed with a separated actuator and 2 NC contacts, ensuring reliable operation. It features a robust construction with Thermoplastic GV housing and cover materials, offering durability in various conditions. With a drawing force of 10 N and a wide ambient temperature range from -30°C to 80°C, this switch is suitable for diverse applications. Additionally, it meets RoHS and REACH-SVHC conformity standards, providing peace of mind regarding environmental regulations and safety compliance.
Product Specifications
Classification Eclass 81 Classification
27270610
Classification Etim 40 Classification
EC002592
Classification Etim 50 Classification
EC002592
Classification Etim 60 Classification
EC002592
Classification Etim 70 Classification
EC002592
Electrical Data Maximum Insulation Rated Voltage Ui
250 V
Electrical Data Protection Class
II
Electrical Data Rated Impulse Voltage
4 kV
General Brands
Wieland
General Model
SMS 2020
Mechanical Data Connection Type
Screw Connection
Mechanical Data Cover Material
Thermoplastic GV (UL94-V0)
Mechanical Data Degree Of Protection Ip
IP65
Mechanical Data Drawing Force
10 N
Mechanical Data Housing Material
Thermoplastic GV (UL94-V0)
Mechanical Data Maximum Ambient Temperature
80 ºC
Mechanical Data Maximum Solidstranded Conductor Cross Section
1.5 mm²
Mechanical Data Mechanical Life Time
106 Switching Cycles
Mechanical Data Minimum Ambient Temperature
-30 ºC
Mechanical Data Minimum Solidstranded Conductor Cross Section
0.5 mm²
Mechanical Data Weight
0.15 kg
Product Compliance Reach Svhc Conformity Status
Compliant
Product Compliance Rohs Conformity Status
Compliant
