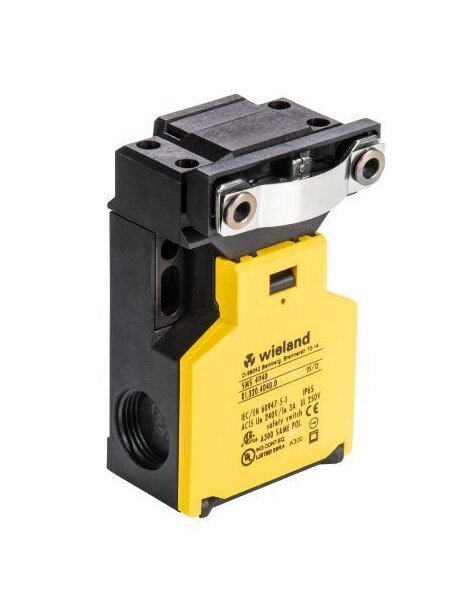

Wieland SMS 4220 Actuating Safety Switch
Wieland SMS 4220 Actuating Safety Switch
SKU:SAF-28d68b
Reliable safety switch with separate actuator, 2 NC contacts, and durable construction for critical applications. IP65 rated and RoHS compliant.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Wieland SMS 4220 Actuating Safety Switch
$39.99
Quantity: 1
Claim Your Seller Account
Wieland SMS 4220 Actuating Safety Switch
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance safety and control with the Wieland SMS 4220 Actuating Safety Switch. Featuring a separate actuator with 2 NC contacts, this switch ensures reliable operation with a drawing force of 30N. Constructed with high-quality Thermoplastic GV materials, it offers durability for a wide temperature range (-30°C to 80°C) and a mechanical life cycle of 106 switching cycles. With IP65 protection and compliance with RoHS and REACH-SVHC standards, this switch is ideal for safety critical applications in various settings.
Product Specifications
Classification Eclass 81 Classification
27270605
Classification Etim 40 Classification
EC002592
Classification Etim 50 Classification
EC001487
Classification Etim 60 Classification
EC001487
Classification Etim 70 Classification
EC001487
Electrical Data Contact Elements Short Circuit Protective Device
6 A class gG fuse, fuse integral < 100 A2s
Electrical Data Contact Elements Utility Category
10 A (DC-13 at 24V DC) | 3 A (AC-15 at 250V AC)
Electrical Data Maximum Insulation Rated Voltage Ui
250 V
Electrical Data Rated Impulse Voltage
2.5 kV
General Brands
Wieland
General Model
SMS 4220
Mechanical Data Cable Entry
3 x M20 x1.5
Mechanical Data Connection Type
Screw Connection
Mechanical Data Cover Material
Thermoplastic GV (UL94-V0)
Mechanical Data Degree Of Protection Ip
IP65
Mechanical Data Drawing Force
30 N
Mechanical Data Housing Material
Thermoplastic GV (UL94-V0)
Mechanical Data Installation Position
Operator Definable
Mechanical Data Maximum Ambient Temperature
80 ºC
Mechanical Data Maximum Flexible Stranded Conductor Cross Sectio
0.5 mm²
Mechanical Data Mechanical Life Time
106 Switching Cycles
Mechanical Data Minimum Ambient Temperature
-30 ºC
Mechanical Data Minimum Flexible Stranded Conductor Cross Sectio
1.5 mm²
Mechanical Data Separate Actuator
Yes
Mechanical Data Weight
0.15 kg
Product Compliance Reach Svhc Conformity Status
Compliant
Product Compliance Rohs Conformity Status
Compliant
