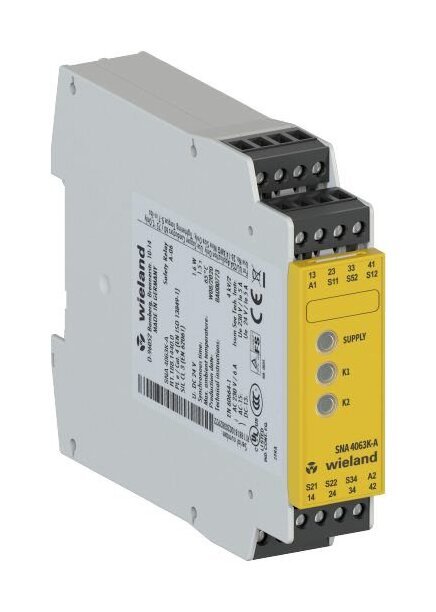

Wieland SNA4063K-A AC 230 (A) Safety Relay
Wieland SNA4063K-A AC 230 (A) Safety Relay
SKU:SAF-d4df8e
Wieland SNA4063K-A AC 230 (A) Safety Relay: Reliable, compliant, and efficient safety device for critical applications.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
Wieland SNA4063K-A AC 230 (A) Safety Relay
$89.99
Quantity: 1
Claim Your Seller Account
Wieland SNA4063K-A AC 230 (A) Safety Relay
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wieland SNA4063K-A AC 230 (A) Basic Safety Relay is a high-quality safety device designed for reliable performance in critical applications. With features like 3 LED function display, multiple circuit protection degrees, and compatibility with various wire terminal ranges, this safety relay ensures secure operations. It meets industry standards such as EN ISO 13849-1, EN 62061, and EN 50156-1, making it suitable for safety-critical functions like monitoring emergency-stop circuits and optoelectronic protection equipment. Compliant with RoHS regulations and offering a mean time to dangerous failure (MTTFd) of 132 a, this safety relay prioritizes safety and durability.
Product Specifications
Application Model
Basic Device
Application Suitable For Monitoring Of Emergency Stop Circuits
Yes
Application Suitable For Monitoring Of Magnetic Switches
Yes
Application Suitable For Monitoring Of Optoelectronic Protection
Yes
Application Suitable For Monitoring Of Position Switches
Yes
Application Suitable For Monitoring Of Proximity Switches
Yes
Classification Eclass 81 Classification
27371819
Classification Etim 30 Classification
EC001449
Classification Etim 40 Classification
EC001449
Classification Etim 50 Classification
EC001449
Classification Etim 60 Classification
EC001449
Classification Etim 70 Classification
EC001449
Connection Data Detachable Clamps
Yes
Control Circuit Evaluation Inputs
2-Channel
Control Circuit Input Current Safety Circuitreset Circuit
25 mA
Control Circuit Maximum Peak Current Safety Circuitreset Circuit
100 mA
Control Circuit Maximum Resistivity Per Channel
⤠(5 + (1.176 x UB / UN - 1) x 100) Ω
Control Circuit Minimum Switch On Time
100 ms
Control Circuit Nominal Direct Current Dc Output Voltage
24 V
Control Circuit Recovery Time Tw
750 ms
Control Circuit Release Time Tr
10 ms
Control Circuit Response Time Ta1
100 ms
Control Circuit Type Of Switch Function Of The Inputs
Normally open contact
Dimensions Depth
114 mm
Dimensions Height
96.5 mm
Dimensions Width
22.5 mm
General Creepage Distances And Clearances Between The Circuits
EN 60664-1
General Feedback Circuit
Yes
General Fine Stranded With Ferrules Screw Terminal Ranges
1 x 0.25 to 2.5 mm² | 2 x 0.2 to 1.0 mm²
Output Circuit Alternating Current Ac Enabling Paths Rated Switc
230 V
Output Circuit Alternating Current Ac Signaling Paths Rated Swit
230 V
Output Circuit Contact Material
Ag-alloy, gold-plated
Output Circuit Direct Current Dc Enabling Paths Rated Switching
24 V
Supply Circuit Maximum Rated Alternating Current Ac Voltage For
253 V
Supply Circuit Minimum Rated Control Supply Voltage At 50 Hertz
196 V
Supply Circuit Minimum Rated Supply Voltage At Direct Current Dc
196 V
Supply Circuit Nominal Voltage Un
AC 230 V
Supply Circuit Rated Control Supply Voltage At 50 Hertz Hz Alter
253 V
Supply Circuit Rated Control Supply Voltage At 60 Hertz Hz Alter
196 V
