The Wieland SNE 4024K-A DC 24V Output Expansion Module is a reliable solution for enhancing current paths and signaling outputs. With a DC 24V power output and screw-terminal pluggable design, this expansion unit is suitable for safety devices. Compliant with EN ISO 13849-1 and EN 62061 standards, it offers high-quality performance with features like fine-stranded/solid wire screw terminal ranges, protection against environmental elements, and a durable build. Ideal for industrial settings requiring precise control and monitoring capabilities.
Product Specifications
Application Suitable For Monitoring Of Emergency Stop Circuits
No
Application Suitable For Monitoring Of Magnetic Switches
No
Application Suitable For Monitoring Of Optoelectronic Protection
No
Application Suitable For Monitoring Of Position Switches
No
Application Suitable For Monitoring Of Proximity Switches
No
Application Suitable For Monitoring Of Tactile Sensors
No
Application Type
Expansion Device
Classification Eclass 81 Classification
27371819
Classification Etim 30 Classification
EC001449
Classification Etim 40 Classification
EC001449
Classification Etim 50 Classification
EC001449
Classification Etim 60 Classification
EC001449
Classification Etim 70 Classification
EC001449
Connection Data Detachable Clamps
Yes
Connection Data Type Of Electric Connection
Screw Connection

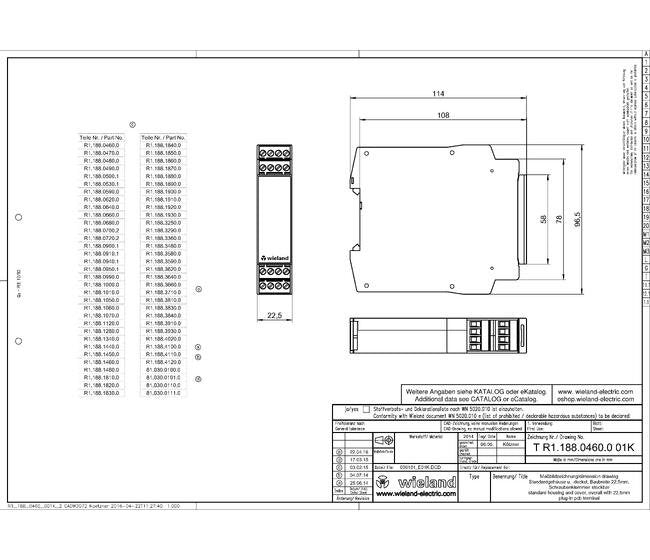

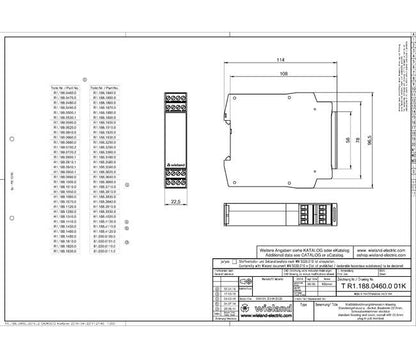

Dimensions Depth
114 mm
Dimensions Height
96.5 mm
Dimensions Width
22.5 mm
General Brands
Wieland
General Creepage Distances And Clearances Between The Circuits
EN 60664-1
General Feedback Circuit
Yes
General Fine Strandedsolid Wire Screw Terminal Ranges
1 x 0.2 to 2.5 mm² | 2 x 0.2 to 1.0 mm²
General Fine Stranded With Ferrules Screw Terminal Ranges
1 x 0.25 to 2.5 mm² | 2 x 0.25 to 1.0 mm²
General Function Display
2 LED, green
General Maximum Ambient Temperature
65 ºC
General Maximum Permissible Torque
0.6 N·m
General Minimum Ambient Temperature
-25 ºC
General Minimum Permissible Torque
0.5 N·m
General Model
SNE 4024K-A DC 24V
General Protection Degree According To Din En 60529 Housing
IP40
General Protection Degree According To Din En 60529 Terminals
IP20
General Rail Mounting Possible
Yes
General Standards
EN ISO 13849-1EN 62061; EN 62061
General Start Contact
No
Output Circuit Alternating Current Ac Enabling Paths Rated Switc
230 V
Output Circuit Contact Material
Ag-alloy, gold-plated
Output Circuit Direct Current Dc Enabling Paths Rated Switching
24 V
Supply Circuit Maximum Operating Voltage
30 V
Supply Circuit Minimum Operating Voltage
18 V
Supply Circuit Nominal Voltage Un
DC 24 V
