The Wieland SNE4004KV-A 3S DC 24V (A) Output Expansion Module is a reliable solution for expanding output capabilities. With 2 green LED function displays, EN ISO 13849-1 and EN 62061 standards compliance, and a wide temperature range from -25ºC to 55ºC, this module ensures precision and safety. Featuring screw connections and 3 delayed signaling outputs, it is ideal for controlling electrical circuits efficiently.
Product Specifications
Application Suitable For Monitoring Of Emergency Stop Circuits
No
Application Suitable For Monitoring Of Magnetic Switches
No
Application Suitable For Monitoring Of Optoelectronic Protection
No
Application Suitable For Monitoring Of Position Switches
No
Application Suitable For Monitoring Of Tactile Sensors
No
Application Type
Expansion Device
Classification Eclass 81 Classification
27371819
Classification Etim 30 Classification
EC001449
Classification Etim 40 Classification
EC001449
Classification Etim 50 Classification
EC001449
Classification Etim 60 Classification
EC001449
Classification Etim 70 Classification
EC001449
Connection Data Detachable Clamps
Yes
Connection Data Type Of Electric Connection
Screw Connection
Control Circuit Maximum Resistivity Per Channel
⤠(5 + (1.176 x UB, UN - 1) x 100) Ω
Control Circuit Recovery Time Tw
> 40 ms
Control Circuit Release Time Tr
3 s
Control Circuit Response Time Ta1
150 ms
Control Circuit Response Time Ta2
150 ms

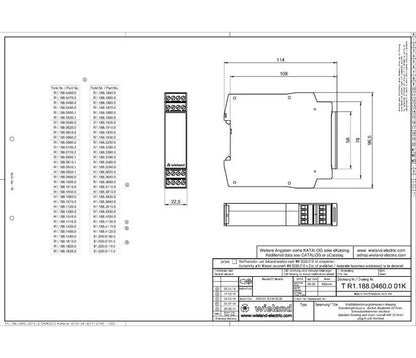

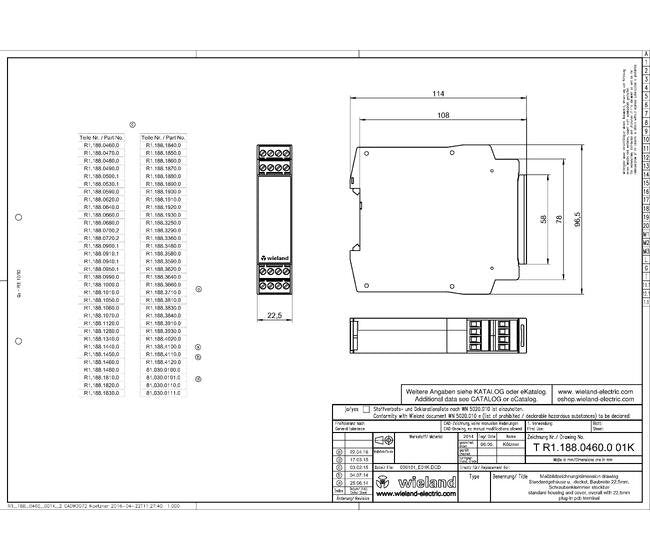

Dimensions Depth
114 mm
Dimensions Height
96.5 mm
Dimensions Width
22.5 mm
General Brands
Wieland
General Creepage Distances And Clearances Between The Circuits
EN 60664-1
General Feedback Circuit
Yes
General Fine Strandedsolid Wire Screw Terminal Ranges
1 x 0.2 to 2.5 mm² | 2 x 0.2 to 1.0 mm²
General Fine Stranded With Ferrules Screw Terminal Ranges
1 x 0.25 to 2.5 mm² | 2 x 0.25 to 1.0 mm²
General Function Display
2 LED, green
General Maximum Ambient Temperature
55 ºC
Output Circuit Alternating Current Ac Enabling Paths Rated Switc
230 V
Output Circuit Alternating Current Ac Signaling Paths Rated Swit
230 V
Output Circuit Contact Material
Ag-alloy, gold-plated
Output Circuit Direct Current Dc Enabling Paths Rated Switching
24 V
Output Circuit Direct Current Dc Signaling Paths Rated Switching
24 V
Supply Circuit Maximum Operating Voltage
26.4 V
Supply Circuit Maximum Rated Alternating Current Ac Voltage For
26.4 V
Supply Circuit Maximum Rated Direct Current Dc Voltage For Contr
26.4 V
Supply Circuit Minimum Operating Voltage
20.4 V
Supply Circuit Minimum Rated Direct Current Dc Voltage For Contr
20.4 V
Supply Circuit Nominal Voltage Un
DC 24 V
