Wieland SNO4003K-A Single Channel Control Relay (AC 115V-120V)
Wieland SNO4003K-A Single Channel Control Relay (AC 115V-120V)
SKU:SAF-73827a
Wieland SNO4003K-A Single Channel Control Relay: Ensuring safety and reliability with automatic/manual reset, multiple current paths, and signaling output.
Regular price
$189.99
Regular price
Sale price
$189.99
Unit price
per
Initiate Order
Wieland SNO4003K-A Single Channel Control Relay (AC 115V-120V)
$189.99
Quantity: 1
Claim Your Seller Account
Wieland SNO4003K-A Single Channel Control Relay (AC 115V-120V)
$189.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

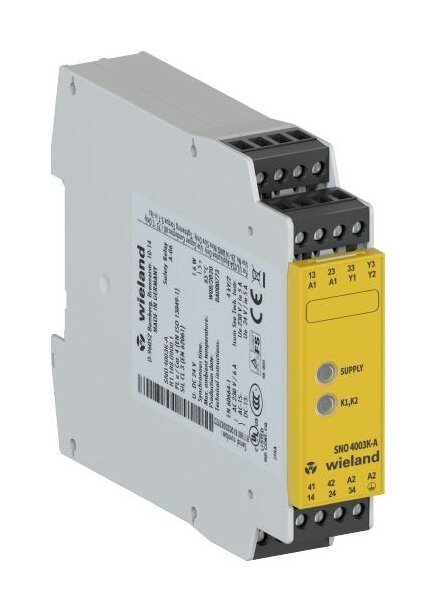

The Wieland SNO4003K-A Single Channel Control Relay is a reliable base unit featuring automatic/manual reset with reset switch monitoring. With 3 enabling current paths, 1 signaling output, and screw-terminal pluggable design, this relay operates at AC 115-120V 50-60Hz. Compliant with EN standards, it offers IP40 housing protection and IP20 terminal protection. Suitable for monitoring emergency-stop circuits and position switches, it ensures safety while providing high performance. With Ag-alloy gold-plated contacts and excellent thermal current ratings, this relay guarantees efficiency and durability for various applications.
Product Specifications
Application Suitable For Monitoring Of Emergency Stop Circuits
Yes
Application Suitable For Monitoring Of Magnetic Switches
No
Application Suitable For Monitoring Of Optoelectronic Protection
No
Application Suitable For Monitoring Of Position Switches
Yes
Application Suitable For Monitoring Of Proximity Switches
Yes
Classification Eclass 81 Classification
27371819
Classification Etim 30 Classification
EC001449
Classification Etim 40 Classification
EC001449
Classification Etim 50 Classification
EC001449
Classification Etim 60 Classification
EC001449
Classification Etim 70 Classification
EC001449
Connection Data Detachable Clamps
Yes
Connection Data Type Of Electric Connection
Screw Connection
Control Circuit Evaluation Inputs
1-channel
Control Circuit Input Current Safety Circuitreset Circuit
90 mA
Control Circuit Maximum Peak Current Safety Circuitreset Circuit
1500 mA
Control Circuit Maximum Resistivity Per Channel
⤠(7.5 + (1.176 x UB / UN - 1) x 150) Ω
Control Circuit Minimum Switch On Time
60 ms
Control Circuit Nominal Direct Current Dc Output Voltage
24 V
Control Circuit Recovery Time Tw
>Â 200 ms
Control Circuit Release Time Tr
<Â 80 ms
Control Circuit Response Time Ta1
60 ms
Control Circuit Response Time Ta2
180 ms
Control Circuit Type Of Switch Function Of The Inputs
Normally open contact

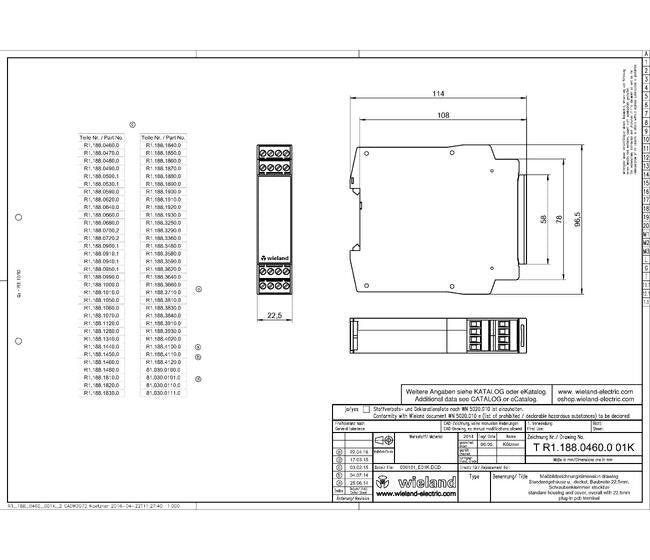

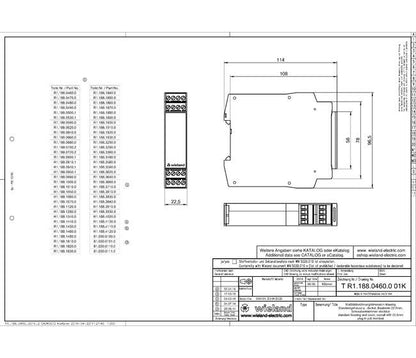

Dimensions Depth
114 mm
Dimensions Height
96.5 mm
Dimensions Width
22.5 mm
General Brands
Wieland
Output Circuit Alternating Current Ac Enabling Paths Rated Switc
230 V
Output Circuit Alternating Current Ac Signaling Paths Rated Swit
230 V
Output Circuit Contact Material
Ag-alloy, gold-plated
Output Circuit Direct Current Dc Enabling Paths Rated Switching
24 V
Output Circuit Direct Current Dc Signaling Paths Rated Switching
24 V
Supply Circuit Maximum Operating Voltage
132 V
Supply Circuit Maximum Rated Alternating Current Ac Voltage For
132 V
Supply Circuit Minimum Operating Voltage
97.8 V
Supply Circuit Minimum Rated Control Supply Voltage At 50 Hertz
97.8 V
Supply Circuit Nominal Voltage Un
AC 115 to 120 V
Supply Circuit Rated Control Supply Voltage At 50 Hertz Hz Alter
132 V
Supply Circuit Rated Control Supply Voltage At 60 Hertz Hz Alter
97.8 V
