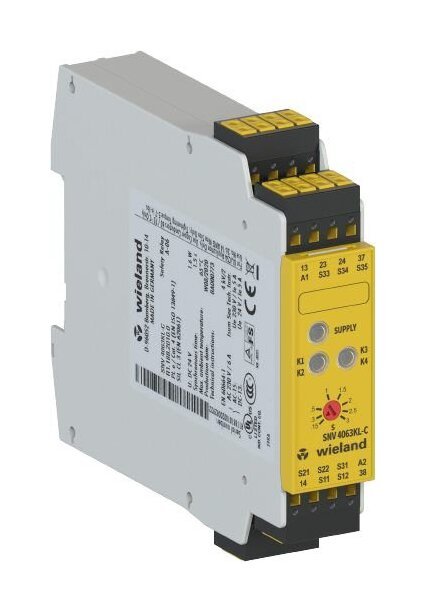

Wieland SNV4063KL-C 3S DC 24V Timed Control Safety Relay
Wieland SNV4063KL-C 3S DC 24V Timed Control Safety Relay
SKU:SAF-8ebb2c
Enhance safety with the Wieland SNV4063KL-C 3S DC 24V Timed Control Safety Relay for reliable single/two-channel operations and automatic/manual reset options.
Regular price
$169.99
Regular price
Sale price
$169.99
Unit price
per
Initiate Order
Wieland SNV4063KL-C 3S DC 24V Timed Control Safety Relay
$169.99
Quantity: 1
Claim Your Seller Account
Wieland SNV4063KL-C 3S DC 24V Timed Control Safety Relay
$169.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wieland SNV4063KL-C 3S DC 24V Timed Control Safety Relay is a reliable base unit suitable for single or two-channel control operations. With automatic/manual reset options, this relay includes reset switch monitoring for added safety. It features 2 immediate switching current paths, 1 off-delayed enabling current path ranging from 0.15s to 3s, and operates at DC 24V. The push-in terminals are pluggable, allowing for easy installation and maintenance. Designed for safety applications, it complies with EN standards such as EN ISO 13849-1 and is suited for safety functions, making it ideal for various institutional and government procurement needs.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Application Model
Basic Device
Application Suitable For Monitoring Of Emergency Stop Circuits
Yes
Application Suitable For Monitoring Of Magnetic Switches
Yes
Application Suitable For Monitoring Of Optoelectronic Protection
Yes
Application Suitable For Monitoring Of Position Switches
Yes
Application Suitable For Monitoring Of Proximity Switches
Yes
Classification Eclass 81 Classification
27371819
Classification Etim 30 Classification
EC001449
Classification Etim 40 Classification
EC001449
Classification Etim 50 Classification
EC001449
Classification Etim 60 Classification
EC001449
Classification Etim 70 Classification
EC001449
Connection Data Detachable Clamps
Yes
Connection Data Type Of Electric Connection
Spring Clamp Connection
Control Circuit Evaluation Inputs
2-Channel
Control Circuit Input Current Safety Circuitreset Circuit
25 mA
Control Circuit Maximum Peak Current Safety Circuitreset Circuit
2500 mA
Control Circuit Maximum Resistivity Per Channel
⤠(5 + (1.176 x UB / UN - 1) x 100) Ω
Control Circuit Minimum Switch On Time
200 ms
Control Circuit Nominal Direct Current Dc Output Voltage
22 V
Control Circuit Recovery Time Tw
> 500 ms
Control Circuit Release Time Tr
< 25 ms
Control Circuit Release Time Tr Delayed Contacts Tolerance
0.15 to 3 s (± 16 %)
Control Circuit Response Time Ta1
30 ms
Control Circuit Response Time Ta2
700 ms
Control Circuit Synchronous Time Ts
500 ms
Control Circuit Type Of Switch Function Of The Inputs
Normally open contact

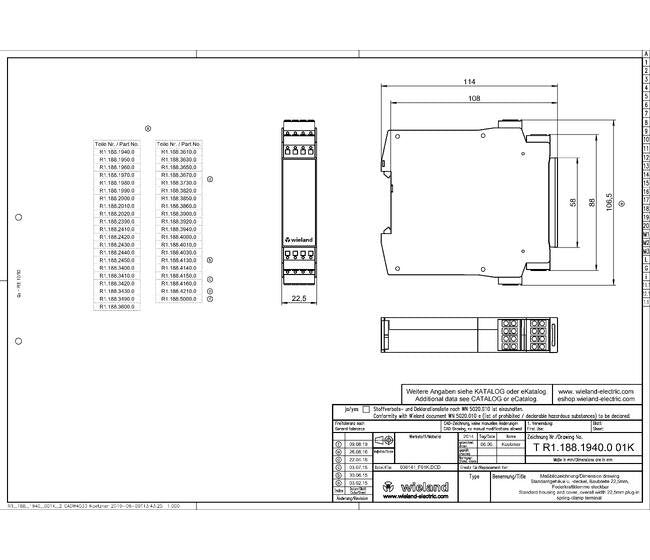

Dimensions Depth
114 mm
Dimensions Height
106.5 mm
Dimensions Width
22.5 mm
General Creepage Distances And Clearances Between The Circuits
EN 60664-1
General Feedback Circuit
Yes
Output Circuit Alternating Current Ac Enabling Paths Rated Switc
230 V
Output Circuit Contact Material
Ag-alloy, gold-plated
Output Circuit Direct Current Dc Enabling Paths Rated Switching
24 V
Supply Circuit Maximum Rated Direct Current Dc Voltage For Contr
26.4 V
Supply Circuit Minimum Rated Direct Current Dc Voltage For Contr
20.4 V
Supply Circuit Minimum Rated Supply Voltage At Direct Current Dc
20.4 V
Supply Circuit Nominal Voltage Un
DC 24 V
