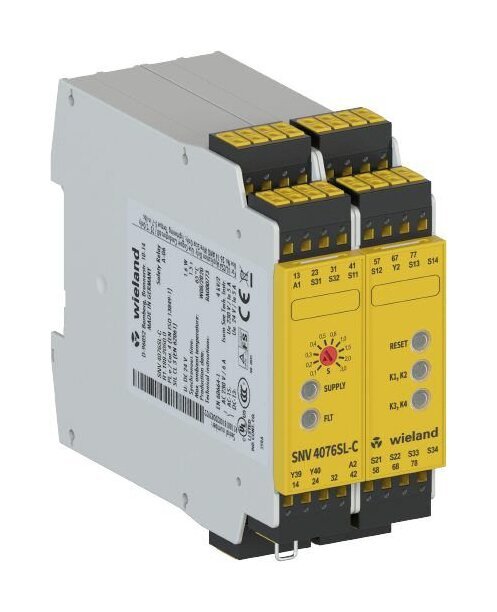

Wieland SNV4076SL-C 3S DC 24V Safety Relay
Wieland SNV4076SL-C 3S DC 24V Safety Relay
SKU:SAF-9e5378
Enhance safety control with Wieland's SNV4076SL-C 3S DC 24V Safety Relay. Compliant with EN standards for reliable performance.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
Wieland SNV4076SL-C 3S DC 24V Safety Relay
$129.99
Quantity: 1
Claim Your Seller Account
Wieland SNV4076SL-C 3S DC 24V Safety Relay
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wieland SNV4076SL-C 3S DC 24V Safety Relay is a versatile base unit designed for single or two-channel control with automatic/manual reset functionality. It features 3 immediate switching current paths, off-delayed enabling paths, and operates at DC 24V. With a robust construction and push-in terminals for easy installation, this relay ensures reliable safety functions for various applications. Compliant with EN 62061 and EN ISO 13849-1 standards, this device is suitable for safety-critical environments requiring high-performance safety relays.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Application Model
Basic Device
Application Suitable For Monitoring Of Emergency Stop Circuits
Yes
Application Suitable For Monitoring Of Magnetic Switches
Yes
Application Suitable For Monitoring Of Optoelectronic Protection
Yes
Application Suitable For Monitoring Of Position Switches
Yes
Application Suitable For Monitoring Of Proximity Switches
Yes
Classification Eclass 81 Classification
27371819
Classification Etim 30 Classification
EC001449
Classification Etim 40 Classification
EC001449
Classification Etim 50 Classification
EC001449
Classification Etim 60 Classification
EC001449
Classification Etim 70 Classification
EC001449
Connection Data Detachable Clamps
Yes
Connection Data Type Of Electric Connection
Spring Clamp Connection
Control Circuit Evaluation Inputs
2-Channel
Control Circuit Minimum Switch On Time
100 ms
Control Circuit Recovery Time Tw
> 50 ms
Control Circuit Release Time Tr
< 20 ms
Control Circuit Release Time Tr Delayed Contacts Tolerance
0.1 - 3 s (± 0.1 %, ± 15 ms)
Control Circuit Response Time Ta1
200 ms
Control Circuit Response Time Ta2
200 ms
Control Circuit Type Of Switch Function Of The Inputs
Normally open contact

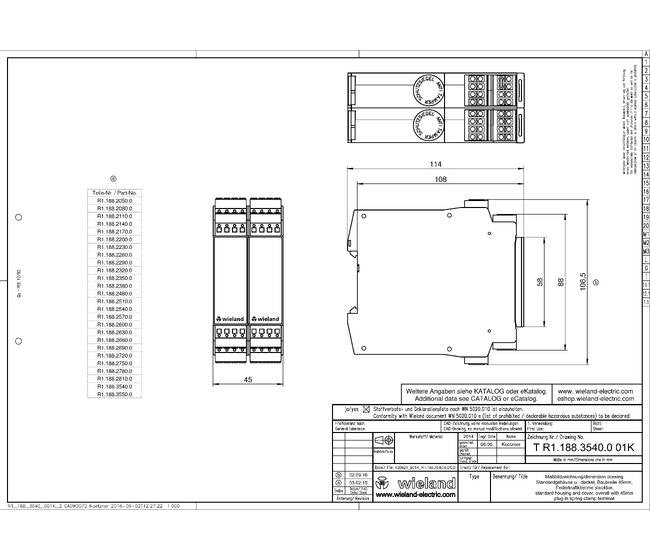

Dimensions Depth
114 mm
Dimensions Height
106.5 mm
Dimensions Width
45 mm
General Creepage Distances And Clearances Between The Circuits
EN 60664-1
General Feedback Circuit
Yes
General Function Display
5 LED, Green
General Maximum Ambient Temperature
55 ºC
General Minimum Ambient Temperature
-25 ºC
Output Circuit Alternating Current Ac Enabling Paths Rated Switc
230 V
Output Circuit Alternating Current Ac Signaling Paths Rated Swit
230 V
Output Circuit Contact Material
Ag-alloy, gold-platedc
Output Circuit Direct Current Dc Enabling Paths Rated Switching
24 V
Output Circuit Direct Current Dc Signaling Paths Rated Switching
24 V
Supply Circuit Maximum Rated Direct Current Dc Voltage For Contr
26.4 V
Supply Circuit Minimum Rated Direct Current Dc Voltage For Contr
20.4 V
Supply Circuit Minimum Rated Supply Voltage At Direct Current Dc
20.4 V
Supply Circuit Nominal Voltage Un
DC 24 V
