Wieland Solid State Relay Module - 115V/48VDC-0.5A
Wieland Solid State Relay Module - 115V/48VDC-0.5A
SKU:COU-96c2e7
Enhance control with Wieland's 115V/48VDC Relay Module, featuring precise voltage regulation and compact design.
Regular price
$34.99
Regular price
Sale price
$34.99
Unit price
per
Initiate Order
Wieland Solid State Relay Module - 115V/48VDC-0.5A
$34.99
Quantity: 1
Claim Your Seller Account
Wieland Solid State Relay Module - 115V/48VDC-0.5A
$34.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Experience unmatched efficiency and control with the Wieland Solid State Relay Module. This coupling relay boasts a 6.2mm width, spring clamp terminals, and precise input/output voltages (115VAC/DC input, 4.4-53VDC/0.5A output). With a compact design and compliance with RoHS and REACH-SVHC regulations, this relay module is a reliable and environmentally-friendly choice for various applications.
Product Specifications
Classification Eclass 81 Classification
27371014
Classification Etim 30 Classification
EC002055
Classification Etim 40 Classification
EC002055
Classification Etim 50 Classification
EC002055
Classification Etim 60 Classification
EC002055
Classification Etim 70 Classification
EC002055

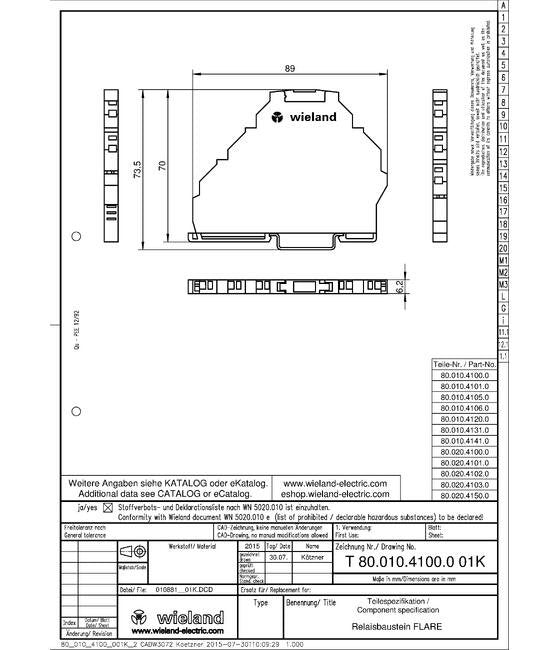

Dimensions Depth
70 mm
Dimensions Height
89 mm
Dimensions Width
6.2 mm
General Brands
Wieland
General Connection Type
Spring Clamp Connection
General Model
SOLID STATE RELAY FLARE-115V/48VDC-0,5A
Product Compliance Reach Svhc Conformity Status
Compliant
Product Compliance Rohs Conformity Status
Compliant
Technical Data Maximum Connection Voltage
53 V
Technical Data Maximum Control Voltage
122 V
Technical Data Maximum Control Voltage Frequency
60 Hz
Technical Data Minimum Connection Voltage
4.5 V
Technical Data Minimum Control Voltage
70 V
Technical Data Minimum Control Voltage Frequency
50 Hz
Technical Data Modular Version
No
Technical Data Rated Operating Direct Current Dc
0.5 A
Technical Data Type Of Excitation
Alternating Current (AC)/Direct Current (DC)
