Wieland SP-COP2-ENI-A samos Pro Compact Safety Controller
Wieland SP-COP2-ENI-A samos Pro Compact Safety Controller
SKU:SAF-686b9b
Enhance safety measures with the Wieland samos Pro Compact Safety Controller, ideal for critical functions. SIL Level 3 certified for reliability.
Regular price
$799.99
Regular price
Sale price
$799.99
Unit price
per
Initiate Order
Wieland SP-COP2-ENI-A samos Pro Compact Safety Controller
$799.99
Quantity: 1
Claim Your Seller Account
Wieland SP-COP2-ENI-A samos Pro Compact Safety Controller
$799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

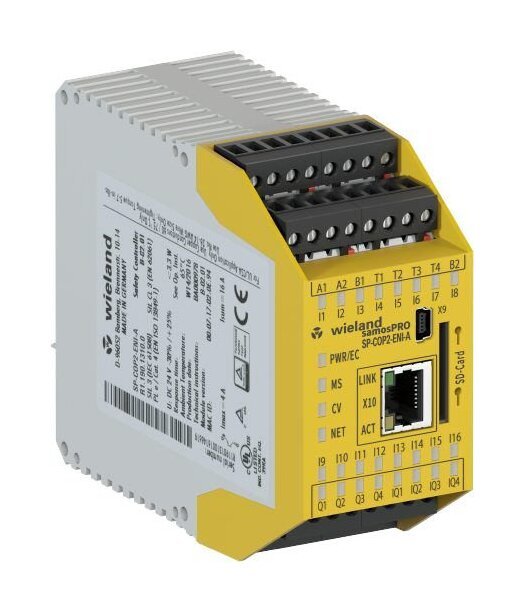

The Wieland SP-COP2-ENI-A samos Pro Compact Safety Controller is a cutting-edge programmable safety controller designed for critical safety functions. With 16 safe inputs, 4 safe outputs, and 4 configurable safe I/O, this controller ensures top-notch safety management. It features Industrial-Ethernet Profinet IO, Ethernet/IP, and Modbus TCP protocols for seamless integration. With a SIL Level 3 rating according to IEC 61508, this controller offers reliability and performance. Expandable and programmable, it provides versatility for various applications. The Wieland SP COP2-ENI-A is RoHS compliant and meets industry-specific certifications, making it a trusted choice for safety control solutions.
Product Specifications
Application Function 2 Hand Switching
Yes
Application Function Access Control
Yes
Application Function Affirm Pushbutton
Yes
Application Function Contacter Monitoring
Yes
Application Function Contactless Working Protection Installation
Yes
Application Function Emergency Stop
Yes
Application Function Operating Mode Selection
Yes
Application Function Restart Blockage
Yes
Application Off Delay Timer
Yes
Application On Delay Timer
Yes
Application With Automatic Closing
Yes
Classification Eclass 81 Classification
27243101
Classification Etim 40 Classification
EC002538
Classification Etim 50 Classification
EC002538
Classification Etim 60 Classification
EC002538
Classification Etim 70 Classification
EC002538
Connection Data Detachable Clamps
Yes
Connection Data Type Of Electric Connection
Screw Connection
Control Circuit Input Current At State 1
2.3 mA
Control Circuit Maximum Rated Direct Current Dc Voltage For Cont
30 V
Control Circuit Minimum Rated Direct Current Dc Voltage For Cont
15.6 V
Control Circuit Number Of Inputs
16
Control Circuit Permitted Voltage At Input
30 V

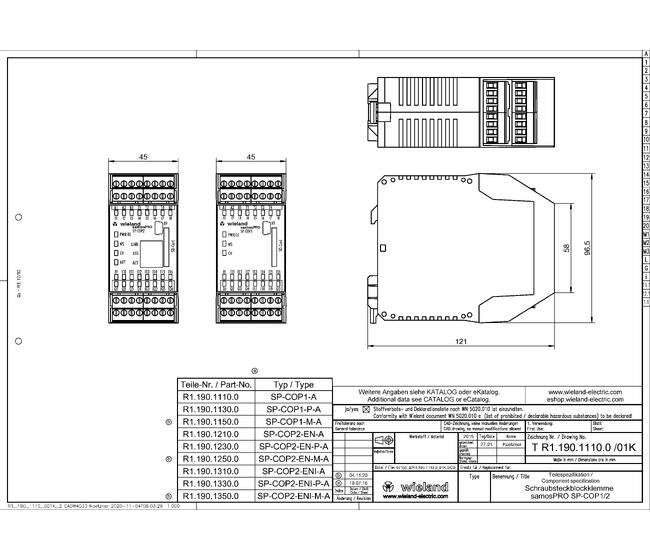

Dimensions Depth
115 mm
Dimensions Height
96 mm
Dimensions Width
45 mm
General Expandable
Yes
General Inoutputs Configurable
Yes
General Networkability
No
General Number Of Hw Interfaces Industrial Ethernet
1
General Number Of Hw Interfaces Universal Serial Bus Usb
1
General Programmable
Yes
General Sil According To Iec 61508
3
General Suited For Safety Functions
Yes
General Supporting Modbus Protocol
Yes
Output Circuit Maximum Allowed Output Voltage
30 V
Output Circuit Minimum Allowed Output Voltage
16.2 V
Supply Circuit Maximum Supply Voltage At Direct Current Dc
30 V
Supply Circuit Minimum Supply Voltage At Direct Current Dc
16.8 V
