Wieland SP-DIO84-K-A samosPro-Compact Safety Controller
Wieland SP-DIO84-K-A samosPro-Compact Safety Controller
SKU:SAF-827644
Wieland SP-DIO84-K-A samosPro-Compact Safety Controller with 8 inputs, 4 outputs, and screw terminal connection. Compliant with RoHS and REACH standards.
Regular price
$389.99
Regular price
Sale price
$389.99
Unit price
per
Initiate Order
Wieland SP-DIO84-K-A samosPro-Compact Safety Controller
$389.99
Quantity: 1
Claim Your Seller Account
Wieland SP-DIO84-K-A samosPro-Compact Safety Controller
$389.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

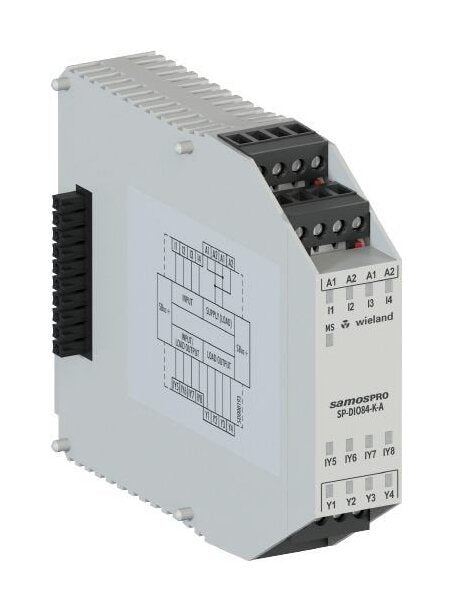

The Wieland SP-DIO84-K-A samosPro-Compact Machine Safety Controller is a high-performance PLC digital I/O module designed for industrial safety applications. With 8 configurable non-safe inputs, 4 non-safe outputs, 4 configurable I/O, and screw terminal pluggable connections, this controller offers versatile integration and reliable safety functions. It meets RoHS standards, ensuring environmentally friendly operation, and conforms to REACH requirements by excluding substances like lead. The compact dimensions of 121mm x 22.5mm x 96.5mm make it suitable for space-constrained installations, while the 4 outputs with short-circuit protection enhance operational safety and efficiency.
Product Specifications
Classification Eclass 81 Classification
27242204
Classification Etim 30 Classification
EC001419
Classification Etim 40 Classification
EC001419
Classification Etim 50 Classification
EC001419
Classification Etim 60 Classification
EC001419
Classification Etim 70 Classification
EC001419
Connection Data Type Of Electric Connection
Screw Connection
Control Circuit Input Current At State 1
3 mA
Control Circuit Number Of Inputs
8
Control Circuit Permitted Voltage At Input
30 V

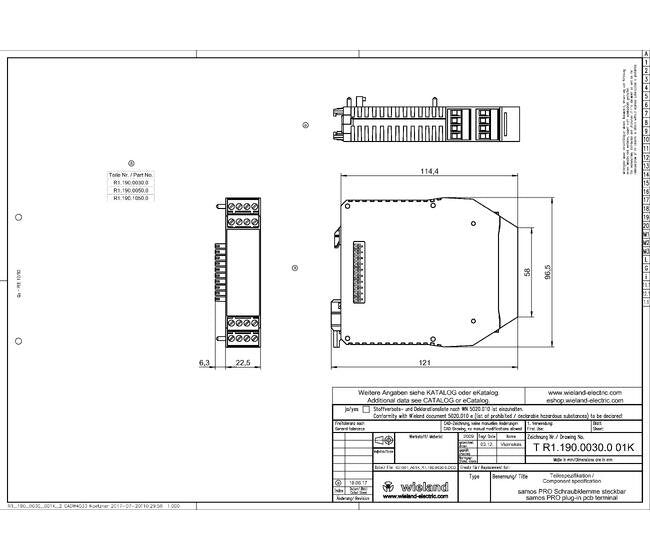

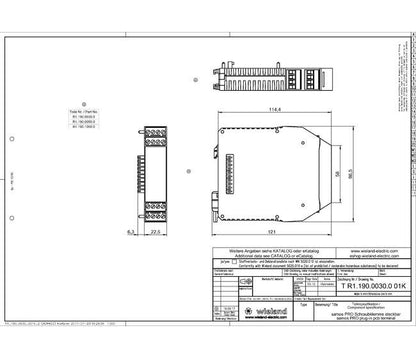

Dimensions Depth
121 mm
Dimensions Height
96.5 mm
Dimensions Width
22.5 mm
General Inoutputs Configurable
Yes
Other Suited For Safety Functions
No
Other Type Of Supply Voltage
Direct Current (DC)
Output Circuit Number Of Outputs
4
Output Circuit Outputs Short Circuit Protection
Yes
Output Circuit Output Current
0.5 A
Output Circuit Type Of Digital Output
Transistor
Product Compliance Reach Svhc Cas Numbers
7439-92-1
Product Compliance Reach Svhc Conformity Status
Duty-To-Declare
Product Compliance Reach Svhc Substances
Lead
Product Compliance Rohs Conformity Status
Compliant/Exempted
Product Compliance Rohs Exceptions
III-6(c)
Supply Circuit Maximum Supply Voltage At Direct Current Dc
30 V
Supply Circuit Minimum Supply Voltage At Direct Current Dc
16.8 V
