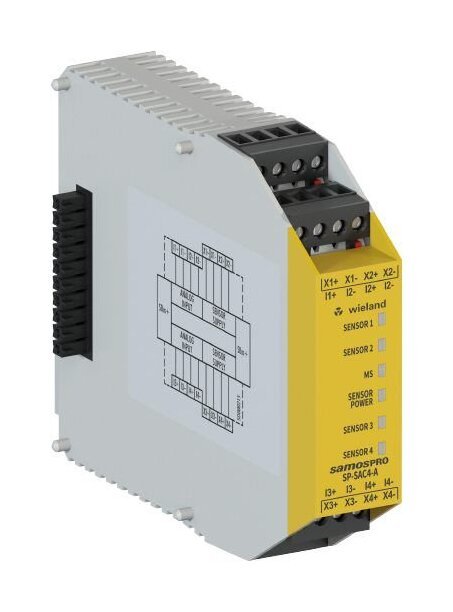

Wieland SP-SAC4-A Analog Input Module
Wieland SP-SAC4-A Analog Input Module
SKU:SAF-90e4ca
Reliable Wieland analog module with 4 safe inputs, pluggable screw-terminals, and SIL 3 certification for safety critical applications.
Regular price
$249.99
Regular price
Sale price
$249.99
Unit price
per
Initiate Order
Wieland SP-SAC4-A Analog Input Module
$249.99
Quantity: 1
Claim Your Seller Account
Wieland SP-SAC4-A Analog Input Module
$249.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wieland SP-SAC4-A Analog Input Module is designed for safety-critical applications, offering 4 safe inputs ranging from 0-20 mA, ensuring precise and reliable data acquisition. This module features pluggable screw-terminals for easy installation and maintenance. With SIL 3 certification according to IEC 61508, configurable in/outputs, and compatibility with safety functions, this module guarantees high-performance and compliance with industry standards.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Classification Eclass 81 Classification
27242202
Classification Etim 40 Classification
EC001421
Classification Etim 50 Classification
EC001421
Connection Data Type Of Electric Connection
Screw Connection
Control Circuit Number Of Inputs
4

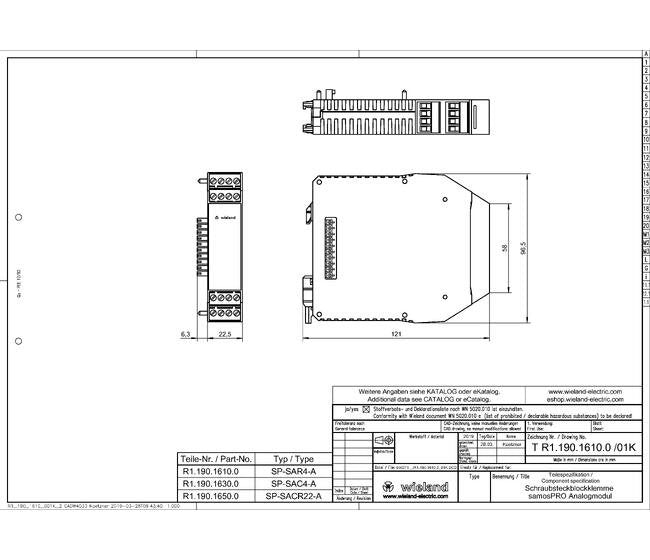

Dimensions Depth
121 mm
Dimensions Height
96.5 mm
Dimensions Width
22.5 mm
General Brands
Wieland
General Inoutputs Configurable
Yes
General Model
SP-SAC4-A
General Sil According To Iec 61508
3
Other Suited For Safety Functions
Yes
Other Type Of Supply Voltage
Direct Current (DC)
Product Compliance Reach Svhc Cas Numbers
13560-89-9 | 7439-92-1
Product Compliance Reach Svhc Conformity Status
Duty-To-Declare
Product Compliance Reach Svhc Substances
1,6,7,8,9,14,15,16,17,17,18,18-Dodecachloropentacyclo [12.2.1.16,9.02,13.05,10] octadeca-7,15-diene;Â Lead
Product Compliance Rohs Conformity Status
Compliant with Exceptions
Product Compliance Rohs Exceptions
III-6(c)
Safety Parameters Category Iso 13849 1
4
Safety Parameters Direct Current Dc
94.1 %
Safety Parameters Mean Time To Dangerous Failure Mttfd
309Â a
Safety Parameters Mission Time Tm
20Â a
Safety Parameters Pl Iso 13849 1
Level e
Specifications Hot Functional Testing Hft
1
Specifications Silcl Iec 62061
3
Supply Circuit Maximum Supply Voltage At Direct Current Dc
30 V
Supply Circuit Minimum Supply Voltage At Direct Current Dc
16.8 V
