Wieland SP-SDIO84-P1-K-A DC 24V PLC Digital I/O Module
Wieland SP-SDIO84-P1-K-A DC 24V PLC Digital I/O Module
SKU:SAF-da375b
High-performance Wieland PLC Digital I/O Module with 8 inputs/4 outputs, SIL 3 certified, and screw terminals. Ideal for safety devices.
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
Wieland SP-SDIO84-P1-K-A DC 24V PLC Digital I/O Module
$349.99
Quantity: 1
Claim Your Seller Account
Wieland SP-SDIO84-P1-K-A DC 24V PLC Digital I/O Module
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

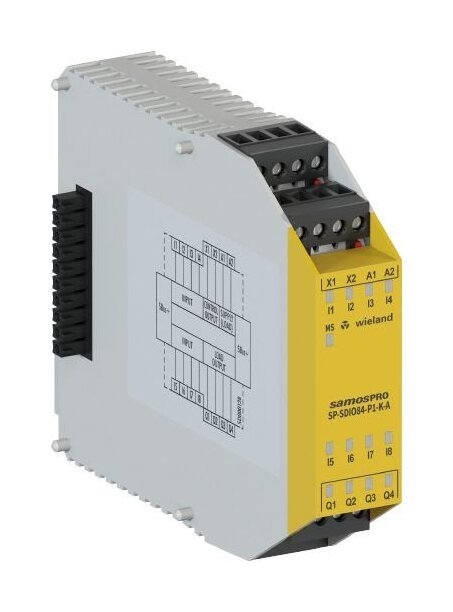

The Wieland SP-SDIO84-P1-K-A DC 24V PLC Digital I/O Module is a top-of-the-line IO-module designed with 8 configurable inputs and 4 solid-state outputs, featuring screw terminals for easy pluggable connections. This module is SIL 3 certified according to IEC 61508, ensuring high reliability for safety functions. With output short-circuit protection and a maximum supply voltage of 30V, it meets stringent safety standards. The compact dimensions and hot functional testing make it a versatile and reliable choice for industrial applications.
Product Specifications
Classification Eclass 81 Classification
27242204
Classification Etim 30 Classification
EC001419
Classification Etim 40 Classification
EC001419
Classification Etim 50 Classification
EC001419
Classification Etim 60 Classification
EC001419
Classification Etim 70 Classification
EC001419
Connection Data Model
SP-SDIO84-P1-K-A DC 24V
Connection Data Type Of Electric Connection
Screw Connection
Control Circuit Input Current At State 1
8 mA
Control Circuit Number Of Inputs
8
Control Circuit Permitted Voltage At Input
30 V

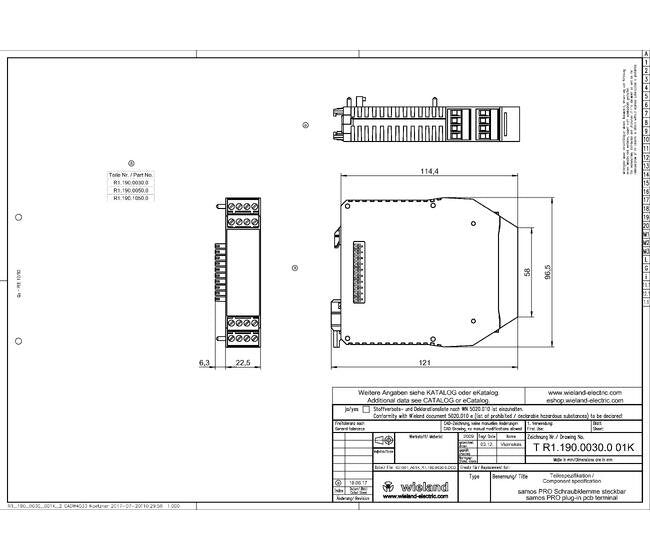

Dimensions Depth
121 mm
Dimensions Height
96.5 mm
Dimensions Width
22.5 mm
General Inoutputs Configurable
Yes
General Sil According To Iec 61508
3
Note Note
More safety characteristics can be found in the manual.
Other Suited For Safety Functions
Yes
Other Type Of Supply Voltage
Direct Current (DC)
Output Circuit Maximum Allowed Output Voltage
30 V
Output Circuit Minimum Allowed Output Voltage
16.8 V
Output Circuit Number Of Outputs
4
Output Circuit Outputs Short Circuit Protection
Yes
Output Circuit Output Current
2 A
Output Circuit Type Of Digital Output
Transistor
Product Compliance Reach Svhc Cas Numbers
7439-92-1
Product Compliance Reach Svhc Conformity Status
Duty-To-Declare
Product Compliance Reach Svhc Substances
Lead
Product Compliance Rohs Conformity Status
Compliant/Exempted
Product Compliance Rohs Exceptions
III-6(c)
Safety Parameters Category Iso 13849 1
4
Safety Parameters Mission Time Tm
20 a
Safety Parameters Pl Iso 13849 1
Level e
Safety Parameters Silcl Iec 62061
3
Specifications Hot Functional Testing Hft
1
Supply Circuit Maximum Supply Voltage At Direct Current Dc
30 V
Supply Circuit Minimum Supply Voltage At Direct Current Dc
16.8 V
