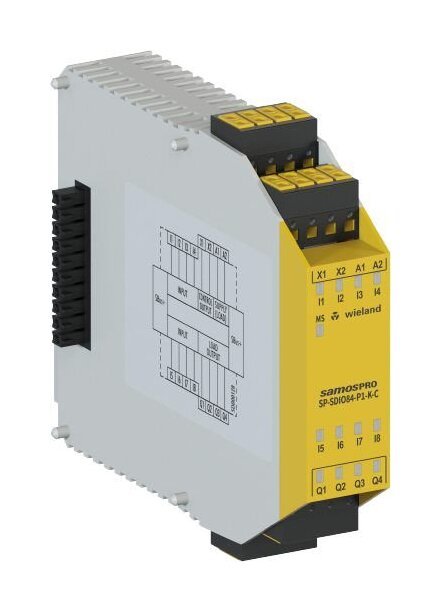

Wieland SP-SDIO84-P1-K-C DC 24V PLC Digital I/O Module
Wieland SP-SDIO84-P1-K-C DC 24V PLC Digital I/O Module
SKU:SAF-072c41
Versatile Wieland PLC Digital I/O Module for safety devices with SIL 3 compliance and configurable inputs/outputs.
Regular price
$189.99
Regular price
Sale price
$189.99
Unit price
per
Initiate Order
Wieland SP-SDIO84-P1-K-C DC 24V PLC Digital I/O Module
$189.99
Quantity: 1
Claim Your Seller Account
Wieland SP-SDIO84-P1-K-C DC 24V PLC Digital I/O Module
$189.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wieland SP-SDIO84-P1-K-C PLC Digital I/O Module is a versatile solution designed for safety devices. With 8 configurable inputs and 4 solid-state outputs, this module offers seamless integration with various systems. Its compact design, push-in terminals, and spring clamp connections ensure easy installation. Meeting SIL 3 standards according to IEC 61508, this module provides reliable safety functions in critical applications. With features like outputs short-circuit protection, high input current tolerance, and compliant supply voltage range, it is ideal for ensuring secure operations. The module's compact dimensions make it suitable for space-constrained environments, and its safety parameters align with Category 4 PL, further enhancing operational safety.
Product Specifications
Classification Eclass 81 Classification
27242204
Classification Etim 30 Classification
EC001419
Classification Etim 40 Classification
EC001419
Classification Etim 50 Classification
EC001419
Classification Etim 60 Classification
EC001419
Classification Etim 70 Classification
EC001419
Connection Data Model
SP-SDIO84-P1-K-C DC 24V
Connection Data Type Of Electric Connection
Spring Clamp Connection
Control Circuit Input Current At State 1
8 mA
Control Circuit Number Of Inputs
8
Control Circuit Permitted Voltage At Input
30 V

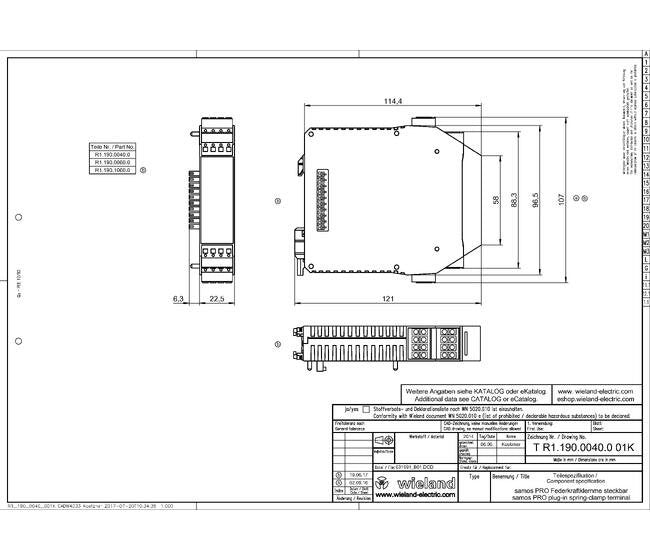

Dimensions Depth
121 mm
Dimensions Height
96.5 mm
Dimensions Width
22.5 mm
General Inoutputs Configurable
Yes
General Sil According To Iec 61508
3
Note Note
More safety characteristics can be found in the manual.
Other Suited For Safety Functions
Yes
Other Type Of Supply Voltage
Direct Current (DC)
Output Circuit Maximum Allowed Output Voltage
30 V
Output Circuit Minimum Allowed Output Voltage
16.8 V
Output Circuit Number Of Outputs
4
Output Circuit Outputs Short Circuit Protection
Yes
Output Circuit Output Current
2 A
Output Circuit Type Of Digital Output
Transistor
Safety Parameters Category Iso 13849 1
4
Safety Parameters Mission Time Tm
20 a
Safety Parameters Pl Iso 13849 1
Level e
Safety Parameters Silcl Iec 62061
3
Specifications Hot Functional Testing Hft
1
Supply Circuit Maximum Supply Voltage At Direct Current Dc
30 V
Supply Circuit Minimum Supply Voltage At Direct Current Dc
16.8 V
