The Wieland Standstill Monitoring Relays offer reliable monitoring for 1- and 3-phase motors with 2 x1 NO contact configuration. Designed as the Basic device - SVM 4001K-A DC24V, it features 4 LED function display, EN 60664-1 creepage distances compliance, and IP40 housing protection. With a wide ambient temperature range, versatile wire screw terminal options, and compatibility with safety functions, these relays ensure optimal motor safety and performance.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Application Suitable For Monitoring Of Magnetic Switches
No
Application Suitable For Monitoring Of Proximity Switches
No
Classification Eclass 81 Classification
27371811
Classification Etim 50 Classification
EC001448
Classification Etim 60 Classification
EC001448
Classification Etim 70 Classification
EC001448
Connection Data Detachable Clamps
Yes
Connection Data Type Of Electric Connection
Screw Connection
Control Circuit Evaluation Inputs
2-Channel
Control Circuit Release Time Tr
20 ms
Control Circuit Response Time Ta1
20 ms

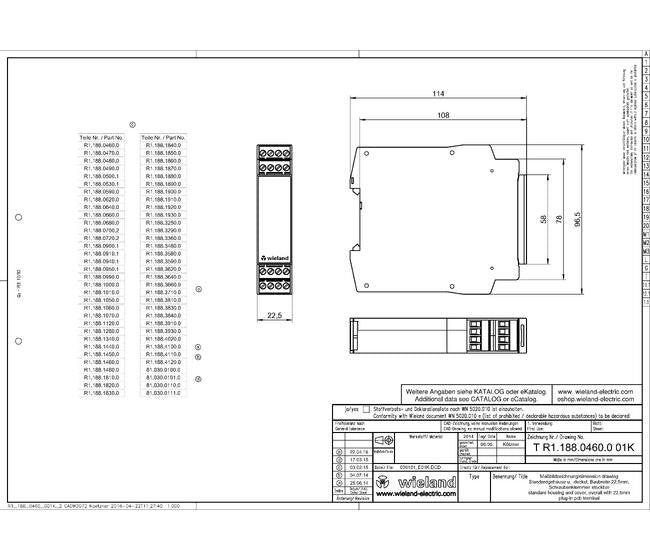

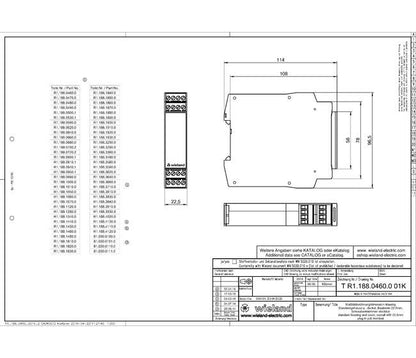

Dimensions Depth
114 mm
Dimensions Height
96.5 mm
Dimensions Width
22.5 mm
General Brands
Wieland
General Creepage Distances And Clearances Between The Circuits
EN 60664-1
General Feedback Circuit
No
General Fine Strandedsolid Wire Screw Terminal Ranges
1 x 0.2 to 2.5 mm² | 2 x 0.2 to 1.0 mm²
General Fine Stranded With Ferrules Screw Terminal Ranges
1 x 0.25 to 2.5 mm² | 2 x 0.25 to 1.0 mm²
General Function Display
4 LED, green/red
General Maximum Ambient Temperature
55 ºC
General Maximum Permissible Torque
0.6 N·m
General Minimum Ambient Temperature
-20 ºC
General Minimum Permissible Torque
0.5 N·m
General Model
Basic device - SVM 4001K-A DC24V
General Protection Degree According To Din En 60529 Housing
IP40
General Protection Degree According To Din En 60529 Terminals
IP20
General Rail Mounting Possible
Yes
General Standards
EN 62061 | EN ISO 13849-1EN 62061
General Start Contact
No
General Stop Category Acc To Iec 60204
1
General Suited For Safety Functions
Yes
General Tightening Moment
0.6 N·m
General Weight
0.18 kg
General With Muting Function
No
Output Circuit Alternating Current Ac Enabling Paths Rated Switc
230 V
Output Circuit Application Category Ac 15 No
Ue 230V, Ie 3A
Output Circuit Contact Material
Ag-alloy
Output Circuit Direct Current Dc Enabling Paths Rated Switching
24 V
Supply Circuit Nominal Direct Current Dc Voltage Un
24 V
