Wieland STS 0130 RFID Transponder Switch

Name: Wieland STS 0130 RFID Transponder Switch
Brand: Wieland Electric Inc.
SKU: SAF-34975a
Price: 79.99 USD
Availability: OutOfStock

SKU:SAF-34975a

Enhance safety with the Wieland STS 0130 RFID Transponder Switch. Automatic start, 8mm switching distance, IP67 protection. Ideal for high-demand safety functions.

$79.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

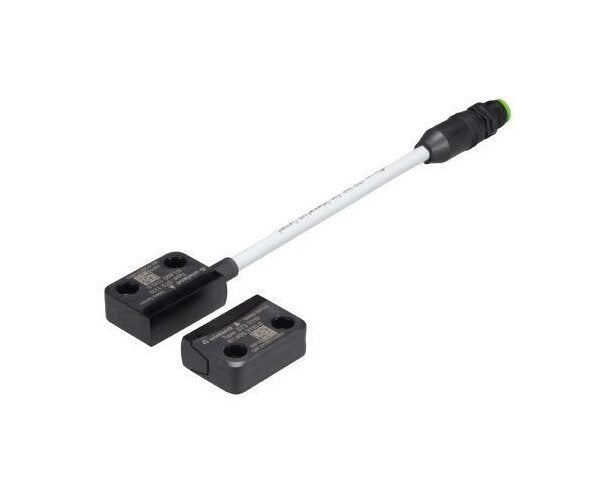

The Wieland STS 0130 RFID Transponder Switch is a cutting-edge safety device designed for reliable and secure operation. Featuring automatic start functionality with a switching distance of 8mm, this fully coded switch and actuator ensures precise performance. With a protection degree of IP67 and unique safety parameters like PL Level e and SILCL 3, it meets stringent industry standards for safety functions. The switch is ideal for applications requiring high-demand safety operation and offers maximum output current of 400mA for enhanced efficiency.

Product Specifications

Classification Eclass 81 Classification

27270105

Classification Etim 40 Classification

EC002544

Classification Etim 50 Classification

EC002544

Classification Etim 60 Classification

EC002544

Classification Etim 70 Classification

EC002544

General Crossshort Circuit Identification Possible

Yes

General Degree Of Protection Ip

IP67

General Housing Material

Plastic

General Number Of Protected Contact Energized Outputs

General Protected Switch Distance Off

18 mm

General Protected Switch Distance On

8 mm

General Suited For Safety Functions

Yes

General Type Of Actuation

Transponder

General Type Of Electric Connection

Connector M12

Output Circuit Maximum Output Current

400 mA

Output Circuit Number Of Protected Semiconductor Outputs

Product Compliance Reach Svhc Conformity Status

Compliant

Safety Parameters Category Iso 13849 1

Safety Parameters Height Of Sensor

25 mm

Safety Parameters Hot Functional Testing Hft

Safety Parameters Length Of Sensor

12 mm

Safety Parameters Mission Time Tm

20Â a

Safety Parameters Pfhd High Demand Mode

2.24Â E-9 1/h

Safety Parameters Pl Iso 13849 1

Level e

Safety Parameters Sensor Width

36 mm

Safety Parameters Silcl Iec 62061

Wieland STS 0130 RFID Transponder Switch
