Wieland STS 0223 RFID Transponder Switch
Wieland STS 0223 RFID Transponder Switch
SKU:SAF-520b41
Reliable Wieland STS 0223 RFID Transponder Switch for precise safety control. IP67 protection, 3m cable, meets ISO safety standards.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Wieland STS 0223 RFID Transponder Switch
$49.99
Quantity: 1
Claim Your Seller Account
Wieland STS 0223 RFID Transponder Switch
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

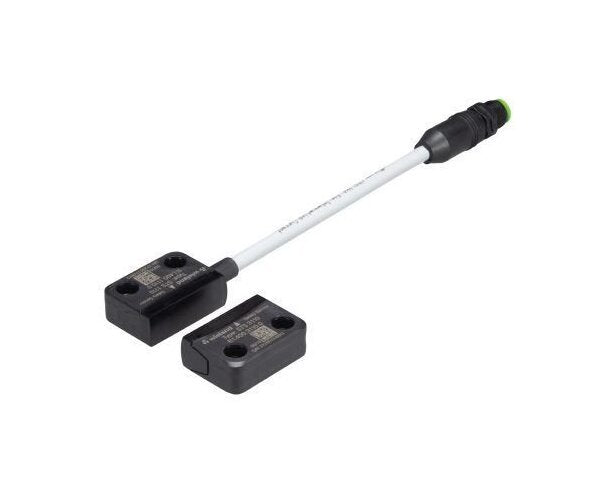

The Wieland STS 0223 Transponder Switch is a safety device designed for reliable and secure actuation. Featuring a coded manual start and a switching distance of 10mm, this switch ensures precise control. With a protection degree of IP67 and a 3m connection cable, it is suited for safety functions with two protected contact energized outputs. Meeting stringent safety parameters like PL (ISO 13849-1) level e and SILCL (IEC 62061) 3, this switch guarantees high performance and compliance. Ideal for both consumer and institutional buyers seeking top-notch safety solutions.
Product Specifications
Classification Eclass 81 Classification
27270105
Classification Etim 40 Classification
EC002544
Classification Etim 50 Classification
EC002544
Classification Etim 60 Classification
EC002544
Classification Etim 70 Classification
EC002544
General Cable Length
3 m
General Crossshort Circuit Identification Possible
Yes
General Degree Of Protection Ip
IP67
General Housing Material
Plastic
General Number Of Protected Contact Energized Outputs
2
General Protected Switch Distance Off
18 mm
General Protected Switch Distance On
18 mm
General Suited For Safety Functions
Yes
General Type Of Actuation
Transponder
General Type Of Electric Connection
Cable
Output Circuit Maximum Output Current
400 mA
Output Circuit Number Of Protected Semiconductor Outputs
2
Product Compliance Reach Svhc Conformity Status
Compliant
Safety Parameters Category Iso 13849 1
4
Safety Parameters Height Of Sensor
25 mm
Safety Parameters Hot Functional Testing Hft
1
Safety Parameters Length Of Sensor
13 mm
Safety Parameters Mission Time Tm
20Â a
Safety Parameters Pfhd High Demand Mode
2.24Â E-9 1/h
Safety Parameters Pl Iso 13849 1
Level e
Safety Parameters Sensor Width
88 mm
Safety Parameters Silcl Iec 62061
3
