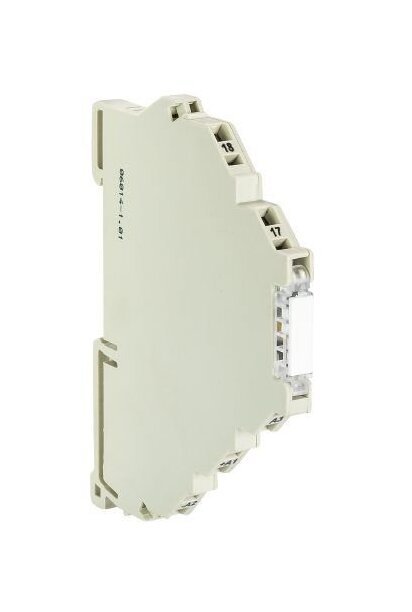

Wieland TIMER-S-250V6A Solid State Relay Module - DC 24V
Wieland TIMER-S-250V6A Solid State Relay Module - DC 24V
SKU:COU-9775f2
Enhance control with the Wieland TIMER-S-250V6A Relay Module - ideal for precision time operations in industrial settings.
Regular price
$69.99
Regular price
Sale price
$69.99
Unit price
per
Initiate Order
Wieland TIMER-S-250V6A Solid State Relay Module - DC 24V
$69.99
Quantity: 1
Claim Your Seller Account
Wieland TIMER-S-250V6A Solid State Relay Module - DC 24V
$69.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wieland TIMER-S-250V6A Relay Module is a versatile multi-function timer relay designed for precise time control applications. With a time range from 0.1s to 300s, this relay module offers reliable performance. It features functions like Delay-on Energization and Floating Contact on Energization, ensuring flexible operation. The spring clamp connection makes installation easy and secure. Compliant with RoHS and REACH-SVHC standards, this relay module is ideal for industrial and institutional use.
Product Specifications
Classification Eclass 81 Classification
27371605
Classification Etim 30 Classification
EC001439
Classification Etim 40 Classification
EC001439
Classification Etim 50 Classification
EC001439
Classification Etim 60 Classification
EC001439
Classification Etim 70 Classification
EC001439
Dimensions Depth
70 mm
Dimensions Height
89 mm
Dimensions Width
6.2 mm
General Brands
Wieland
General Connection Type
Spring Clamp Connection
General Function Flashing Starting With Pause And Fixed Time
Yes
General Function Flashing Starting With Pulse And Fixed Time
Yes
General Model
RELAY MODULE FLARE-TIMER-S-250V6A
Product Compliance Reach Svhc Conformity Status
Compliant
Product Compliance Rohs Conformity Status
Compliant
Technical Data Clock Function Starting With Pause And Variable
No
Technical Data Clock Function Starting With Pulse And Variable
No
Technical Data Function Delay On De Energization
Yes
Technical Data Function Delay On Energization
Yes
Technical Data Function Floating Contact On De Energization
No
Technical Data Function Floating Contact On Energization
Yes
Technical Data Function Pulse Shaping
No
Technical Data Function Star Delta
No
Technical Data Maximum Adjustable Time
300 s
Technical Data Minimum Adjustable Time
0.1 s
Technical Data Minimum Direct Current Dc Nominal Voltage
24 V
Technical Data Only For Remote Control
No
Technical Data Plug In Socket
No
Technical Data Relay Outputs Delayedundelayed Selectable
No
Technical Data Remote Operation Possible
No
Technical Data Semiconductor Output
No
Technical Data Type Of Excitation
Direct Current (DC)
