Wieland TS 35 x 7 DIN Mounting Rail
Wieland TS 35 x 7 DIN Mounting Rail
SKU:DIN-ad3b1e
Enhance industrial setups with Wieland's TS 35 x 7 Size Mounting Rail. Steel construction, 1mm thick, 2000mm long, DIN Rail compatible, and RoHS compliant.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Wieland TS 35 x 7 DIN Mounting Rail
$29.99
Quantity: 1
Claim Your Seller Account
Wieland TS 35 x 7 DIN Mounting Rail
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

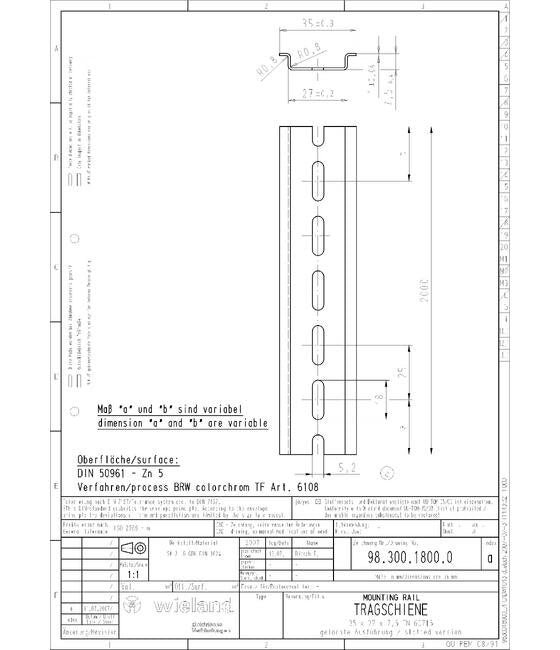

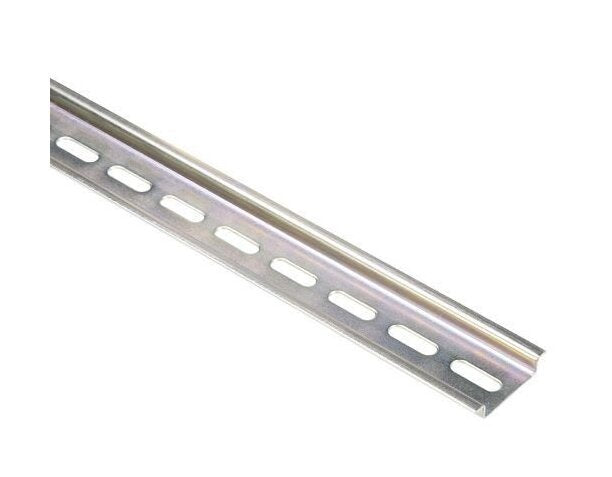

Upgrade your industrial installations with the Wieland TS 35 x 7 Size Mounting Rail. This steel rail, with a 1mm thickness and 2000mm length, fits DIN Rail (Top Hat) systems perfectly. The long-slot perforation design allows for flexible mounting arrangements with a centric drill hole distance of 25mm. Compliant with RoHS and REACH-SVHC standards.
Product Specifications
Classification Eclass 81 Classification
27141143
Classification Etim 30 Classification
EC001285
Classification Etim 40 Classification
EC001285
Classification Etim 50 Classification
EC001285
Classification Etim 60 Classification
EC001285
Classification Etim 70 Classification
EC001285
General Brands
Wieland
General Drill Hole Distance Centrically
25 mm
General Height
7.5 mm
General Length
2000 mm
General Material
Steel
General Model
TS 35 x 7
General Mounting Size
35 x 7.5 mm
General Mounting Type
DIN Rail (Top Hat Rail)
General Surface Finish
Other
General Thickness
1 mm
General Type Of Perforation
Long-Slot
Product Compliance Reach Svhc Conformity Status
Compliant
Product Compliance Rohs Conformity Status
Compliant
