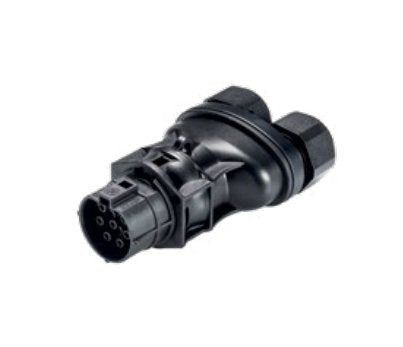

Wieland Turquoise Blue 6/7 Pole Female Splitter Connector
Wieland Turquoise Blue 6/7 Pole Female Splitter Connector
SKU:CIR-2d89d7
Upgrade outdoor electrical connections with Wieland Turquoise Blue Female Splitter Connector. Screw connection, 6/7 poles, cULus-Listed, IEC standards, 10-14mm cable diameter.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Wieland Turquoise Blue 6/7 Pole Female Splitter Connector
$29.99
Quantity: 1
Claim Your Seller Account
Wieland Turquoise Blue 6/7 Pole Female Splitter Connector
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance your electrical connections with the Wieland Turquoise Blue Female Splitter Connector. Designed for outdoor use, this connector features a screw connection, 6/7 poles, and meets cULus-Listed and IEC standards. With a robust construction, it accommodates cables with a diameter ranging from 10mm to 14mm. Operating at voltages of 250V, 400V, and 600V, it offers reliable performance with current ratings suitable for international and Canadian UL requirements.
Product Specifications
Note Note
Technical details are subject to change
Specifications Color Of Codingcontact Carrier
Turquoise Blue
Specifications Connection Type
Screw Connection
Specifications Current According To Canadian Ul Recognized Unite
3 x 16 A + 4 x 2 A (Canada) | 3 x 20 A + 4 x 5 A (USA)
Specifications Current According To International Electrotechnic
3 x 20 A + 4 x 5 A
Specifications Degree Of Protection According To Canadian Ul Rec
Type 4X/6P
Specifications Degree Of Protection According To International E
IP69
Specifications Maximum Cable Diameter
14 mm
Specifications Minimum Cable Diameter
10 mm
Specifications Model
Female
Specifications Number Of Poles
6
Specifications Standards
cULus-Listed | IEC
Specifications Voltage
250 V | 400 V | 600 V
Specifications Wire Size According To Canadian Ul Recognized Uni
20 to 14 AWG
Specifications Wire Size According To International Electrotechn
0.2 to 1.5 mm²
