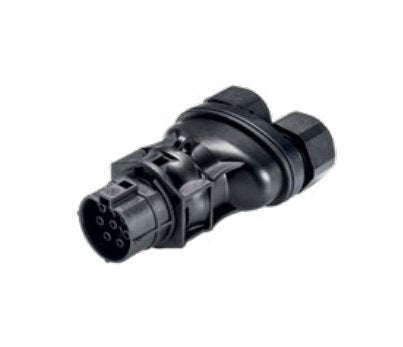

Wieland Turquoise Blue Female Splitter Connector 10mm
Wieland Turquoise Blue Female Splitter Connector 10mm
SKU:CIR-6518a4
Get reliable outdoor electrical connections with the Wieland Turquoise Blue Female Splitter Connector. IP69 & Type 4X/6P protection.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Wieland Turquoise Blue Female Splitter Connector 10mm
$24.99
Quantity: 1
Claim Your Seller Account
Wieland Turquoise Blue Female Splitter Connector 10mm
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wieland Turquoise Blue Female Splitter Connector features a screw connection, suitable for outdoor use with a minimum cable diameter of 10mm. With a cULus-Listed and IEC certification, this connector can handle voltages of 250V, 400V, and 600V, meeting current ratings according to IEC and cURus standards. Its IP69 and Type 4X/6P protection make it ideal for demanding environments, ensuring reliable performance.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Note Note
Technical details are subject to change
Specifications Color Of Codingcontact Carrier
Turquoise Blue
Specifications Connection Type
Screw Connection
Specifications Current According To Canadian Ul Recognized Unite
3 x 16 A + 4 x 2 A (Canada) | 3 x 20 A + 4 x 5 A (USA)
Specifications Current According To International Electrotechnic
3 x 20 A + 4 x 5 A
Specifications Degree Of Protection According To Canadian Ul Rec
Type 4X/6P
Specifications Degree Of Protection According To International E
IP69
Specifications Maximum Cable Diameter
14 mm
Specifications Minimum Cable Diameter
10 mm
Specifications Model
Female
Specifications Number Of Poles
7
Specifications Standards
cULus-Listed | IEC
Specifications Voltage
250 V | 400 V | 600 V
Specifications Wire Size According To Canadian Ul Recognized Uni
20 to 14 AWG
Specifications Wire Size According To International Electrotechn
0.2 to 1.5 mm²
