Wieland TW 4 E/V0 DIN Rail Terminal Block Partition End Plate
Wieland TW 4 E/V0 DIN Rail Terminal Block Partition End Plate
SKU:DIN-b23b02
Wieland TW 4 E/V0 Partition End Plate for DIN rail terminal blocks, 1.5mm thickness, V0 inflammability class, RoHS & REACH-SVHC compliant
Regular price
$9.99
Regular price
Sale price
$9.99
Unit price
per
Initiate Order
Wieland TW 4 E/V0 DIN Rail Terminal Block Partition End Plate
$9.99
Quantity: 1
Claim Your Seller Account
Wieland TW 4 E/V0 DIN Rail Terminal Block Partition End Plate
$9.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

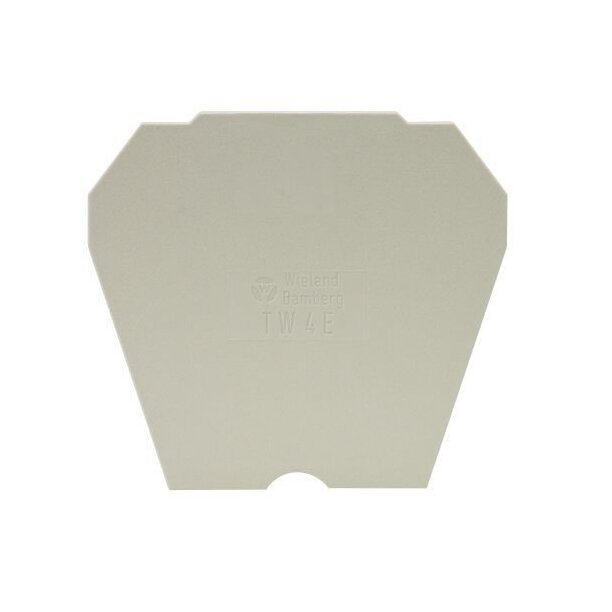

The Wieland TW 4 E/V0 Partition End Plate is designed specifically for DIN rail terminal blocks, offering a high-quality solution for dividing electrical components. This gray end plate boasts a thickness of 1.5mm, ensuring durability and reliability in industrial settings. With a snap-in feature for easy installation and V0 inflammability class according to UL94 standards, this partition provides enhanced safety. Compliant with RoHS and REACH-SVHC regulations, it meets environmental standards while maintaining exceptional performance.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Classification Eclass 81 Classification
27141133
Classification Etim 30 Classification
EC000886
Classification Etim 40 Classification
EC000886
Classification Etim 50 Classification
EC000886
Classification Etim 60 Classification
EC000886
Classification Etim 70 Classification
EC000886
General Brands
Wieland
General Color
Gray
General Inflammability Class Of Insulation Material According Wi
V0
General Model
TW 4 E/V0
General Snap In
Yes
General Thickness
1.5 mm
General Type Of End Plate
No
General Type Of Partition
Yes
Product Compliance Reach Svhc Conformity Status
Compliant
Product Compliance Rohs Conformity Status
Compliant
