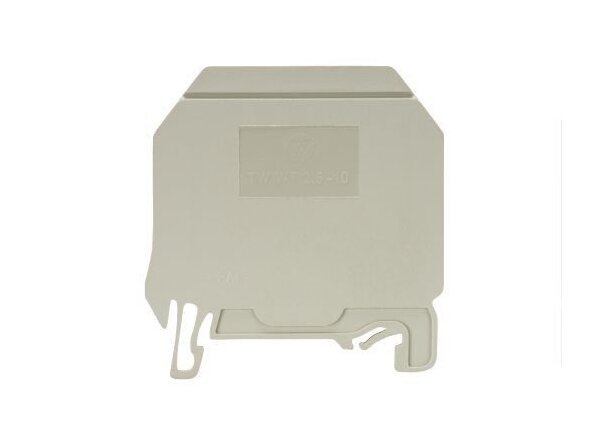

Wieland TW WT 2, 5-10 GR DIN Rail Terminal Block Partition End Plate
Wieland TW WT 2, 5-10 GR DIN Rail Terminal Block Partition End Plate
SKU:DIN-8a56e5
Securely partition and optimize your DIN rail terminal blocks with the Wieland Partition End Plate, compliant with RoHS and REACH-SVHC standards.
Regular price
$12.99
Regular price
Sale price
$12.99
Unit price
per
Initiate Order
Wieland TW WT 2, 5-10 GR DIN Rail Terminal Block Partition End Plate
$12.99
Quantity: 1
Claim Your Seller Account
Wieland TW WT 2, 5-10 GR DIN Rail Terminal Block Partition End Plate
$12.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance the safety and organization of your DIN rail terminal blocks with the Wieland TW WT 2, 5-10 GR Partition End Plate. Designed with a thickness of 2mm and a V0 inflammability class rating according to UL94 standards, this gray end plate securely partitions your terminal blocks. With snap-in functionality and a length of 50.5mm, this end plate ensures efficient installation and reliable performance. Compliant with RoHS and REACH-SVHC standards, rest assured of both quality and environmental responsibility.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Classification Eclass 81 Classification
27141133
Classification Etim 30 Classification
EC000886
Classification Etim 40 Classification
EC000886
Classification Etim 50 Classification
EC000886
Classification Etim 60 Classification
EC000886
Classification Etim 70 Classification
EC000886
General Brands
Wieland
General Color
Gray
General Inflammability Class Of Insulation Material According Wi
V0
General Length
50.5 mm
General Model
TW WT 2, 5-10 GR
General Snap In
Yes
General Thickness
2 mm
General Type Of End Plate
No
General Type Of Partition
Yes
Product Compliance Reach Svhc Conformity Status
Compliant
Product Compliance Rohs Conformity Status
Compliant
