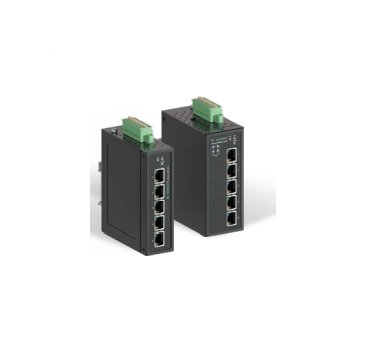

Wieland UMS5G-L Gigabit Ethernet Switch
Wieland UMS5G-L Gigabit Ethernet Switch
SKU:IPS-f4ee56
High-performance Wieland UMS5G-L Gigabit Switch for reliable and efficient networking. 5 RJ45 ports with advanced features and durable design.
Regular price
$149.99
Regular price
Sale price
$149.99
Unit price
per
Initiate Order
Wieland UMS5G-L Gigabit Ethernet Switch
$149.99
Quantity: 1
Claim Your Seller Account
Wieland UMS5G-L Gigabit Ethernet Switch
$149.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wieland UMS5G-L Switch is a high-performance IP switch designed to meet the demanding networking needs of both consumer and institutional buyers. With 5 10/100/1000 RJ45 ports, this switch offers reliable and efficient data transmission. It features advanced switch properties including autonegotiation, autosensing, autopolarity, and IEEE Ethernet standards compliance. The switch is built with durable materials and offers a wide operating temperature range, making it suitable for various environments. With certifications like CE, cULus, and FCC Part 15 Class A, this switch ensures quality and compliance with industry standards.
Product Specifications
Dimensions Approximate Weight
420 g
Dimensions Dimensions W X H X D
23 x 94 x 72 mm
General Brands
Wieland
General Diagnosis Display
Light Emitting Diode (LED)
General Model
Wienet UMS5G-L
General Rohs Certification
Yes
Specifications Note
Subject to technical modifications
Switch Properties Autonegotiation
Yes
Switch Properties Autopolarity
Yes
Switch Properties Autosensing
Yes
Switch Properties Communication
Full Duplex | Half Duplex
Switch Properties Ethernet Standards Institute Of Electrical And
802.3/802.3u/x/ab/z/az802.1 q/p
Switch Properties Flow Control
Back Pressure and Pause Frame-Based Flow Control Schemes
Switch Properties Jumbo Frame
10 kB
Switch Properties Link Layer Discovery Protocol Lldp
Forwarding
Switch Properties Media Access Control Mac Address Table
8 K
Switch Properties Packet Buffer Size
1 MB
Switch Properties Topology
Line | Mesh | Star
Switch Properties Transmission Length
100 mm
Switch Properties Transmission Type
Store and Forward
Technical Data 101001000 Rj45 Ports
5
Technical Features Housing Material
Plastic
Technical Features Maximum Operating Direct Current Dc Voltage
52 V
Technical Features Maximum Operating Temperature
70 ºC
Technical Features Maximum Output With Poe Ports
120 W
Technical Features Maximum Power Consumption
6 W
Technical Features Maximum Relative Humidity During Operation No
95 %
Technical Features Maximum Relay Output Direct Current Dc Voltag
24 V
Technical Features Maximum Storage Temperature
85 ºC
Technical Features Minimum Operating Direct Current Dc Voltage
12 V
Technical Features Minimum Operating Temperature
-40 ºC
Technical Features Minimum Relative Humidity During Operation No
5 %
Technical Features Minimum Storage Temperature
-40 ºC
Technical Features Mounting Method
DIN Rail
Technical Features Norms And Approvals
CE | cULus | FCC Part 15 Class A | UL | UL/IEC 62368-1
Technical Features Protection Class
IP30
Technical Features Redundant Power Supply
2 Power Inputs
Technical Features Relay Output Current
0.5 A
Technical Features Terminal Type
Pluggable Push-In Terminal
