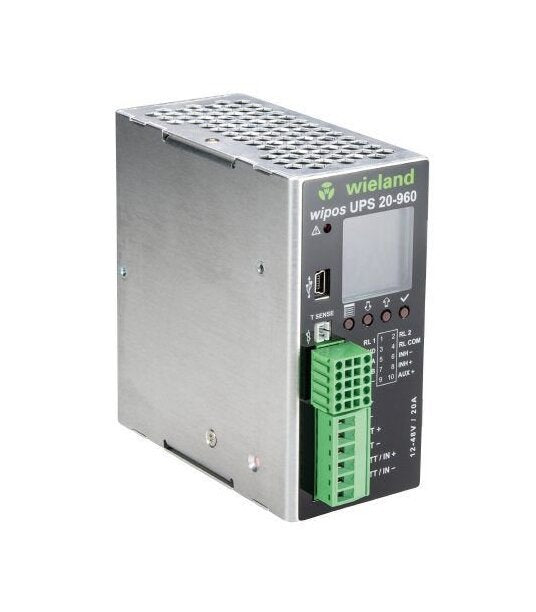

Wieland USV-DC WIPOS UPS 20-960 Uninterruptible Power Supply with Battery Modules
Wieland USV-DC WIPOS UPS 20-960 Uninterruptible Power Supply with Battery Modules
SKU:POW-4a237a
Ensure continuous power supply with the Wieland USV-DC WIPOS UPS 20-960, a versatile and reliable uninterruptible power supply (UPS) solution ideal for diverse applications.
Regular price
$699.00
Regular price
Sale price
$699.00
Unit price
per
Initiate Order
Wieland USV-DC WIPOS UPS 20-960 Uninterruptible Power Supply with Battery Modules
$699.00
Quantity: 1
Claim Your Seller Account
Wieland USV-DC WIPOS UPS 20-960 Uninterruptible Power Supply with Battery Modules
$699.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wieland USV-DC WIPOS UPS 20-960 is a versatile uninterruptible power supply (UPS) combi unit that functions as both a DC-UPS and a DC-DC converter. It effectively bridges longer power failures with its integrated battery charge controller and battery monitoring function compatible with 12-48V lead acid, nickel, and lithium batteries up to 400Ah. This UPS supports a range of battery types and features multiple programmable functions, input/output voltage independence, and a graphic color display for monitoring and diagnostics. With robust technical specs and a compact design, it ensures reliable power backup in various applications.
Product Specifications
Classification Eclass 81 Classification
27049002
Classification Etim 50 Classification
EC002540
Classification Etim 60 Classification
EC002540
Classification Etim 70 Classification
EC002540
Dimensions Depth
134 mm
Dimensions Height
123.7 mm
Dimensions Weight
500 g
Dimensions Width
54 mm
General Brands
Wieland
General Connection Type
Screw Connection
General Degree Of Protection Ip
IP20
General Housing Material
Aluminum
General Maximum Operating Temperature
80 ºC
General Maximum Relative Humidity Rh
95 %
General Maximum Transport Storage Temperature
-40 ºC
General Minimum Operating Temperature
-40 ºC
General Minimum Relative Humidity Rh
5 %
General Minimum Transport Storage Temperature
80 ºC
General Model
USV-DC WIPOS UPS 20-960
General Pollution Degree
2
General Rail Mounting Possible
Yes
Input Maximum Direct Current Dc Input Voltage
60 V
Input Maximum Input Current
20 A
Input Minimum Direct Current Dc Input Voltage
10 V
Input Power Consumption
<Â 4 W
Output Maximum Output Voltage
48 V
Output Minimum Output Voltage
12 V
Output Output Current
20 A
Output Output Power
960 W
Output Output Voltage
24 V
Product Compliance Reach Svhc Conformity Status
Compliant
Product Compliance Rohs Conformity Status
Compliant
Technical Data Battery Type
Lead-Acid | Lithium | Nickel | Supercap Capacitors
Technical Data Ce Norm
EN55011, EN55022, EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN60529
Technical Data Charging Current At 10 Ampere Hours Ah Power
20 A
Technical Data Connector Cross Section Input
2.5 mm² | 24-12 AWG
Technical Data Connector Cross Section Output
2.5 mm² | 24-12 AWG
Technical Data Display
Light Emitting Diode (LED)
Technical Data Emc Version
Yes
Technical Data Function Display
1.5" color graphic LCD
