Wieland USV-DC WIPOS UPS 24-30 Uninterruptible Power Supply with Battery Modules
Wieland USV-DC WIPOS UPS 24-30 Uninterruptible Power Supply with Battery Modules
SKU:POW-4a8502
Reliable UPS system with battery backup and wide temperature range for critical power protection
Regular price
$399.99
Regular price
Sale price
$399.99
Unit price
per
Initiate Order
Wieland USV-DC WIPOS UPS 24-30 Uninterruptible Power Supply with Battery Modules
$399.99
Quantity: 1
Claim Your Seller Account
Wieland USV-DC WIPOS UPS 24-30 Uninterruptible Power Supply with Battery Modules
$399.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

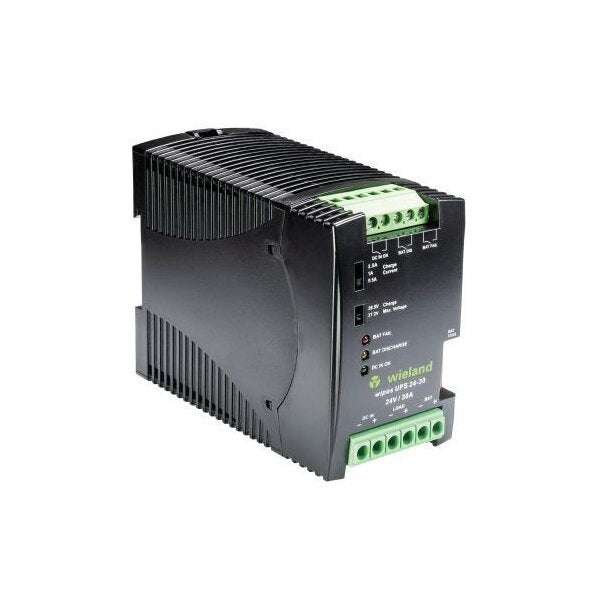

The Wieland USV-DC WIPOS UPS 24-30 is a reliable uninterruptible power supply system designed for critical power protection. With a battery module and power supply, it offers instantaneous protection from input power interruptions. This UPS features a wide operating temperature range, modular design, and sturdy polycarbonate housing. It meets strict industry standards such as UL listing and EN regulations, making it ideal for both consumer and institutional use.
Product Specifications
Classification Eclass 81 Classification
27049002
Classification Etim 50 Classification
EC002540
Classification Etim 60 Classification
EC002540
Classification Etim 70 Classification
EC002540

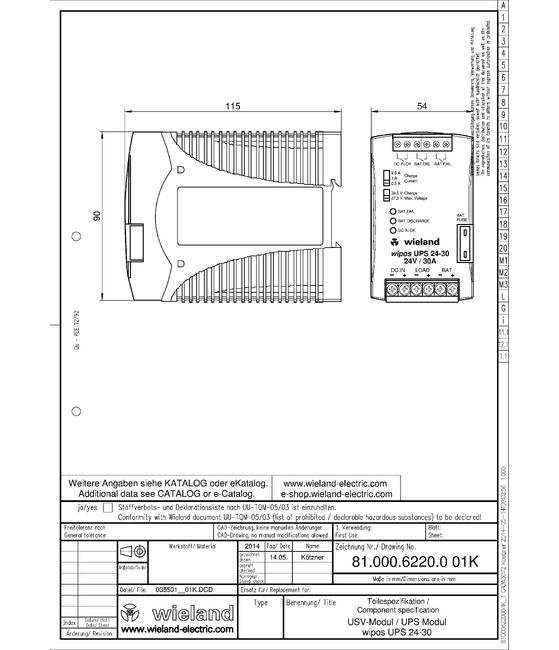

Dimensions Depth
115 mm
Dimensions Height
90 mm
Dimensions Weight
370 g
Dimensions Width
54 mm
General Brands
Wieland
General Connection Type
Screw Connection
General Degree Of Protection Ip
IP20
General Housing Material
Polycarbonate
General Maximum Operating Temperature
71 ºC
General Maximum Relative Humidity Rh
95 %
General Maximum Transport Storage Temperature
-40 ºC
General Minimum Operating Temperature
-40 ºC
General Minimum Relative Humidity Rh
20 %
General Minimum Transport Storage Temperature
85 ºC
General Model
USV-DC WIPOS UPS 24-30
General Modular Version
Yes
General Pollution Degree
2
General Rail Mounting Possible
Yes
Input Maximum Direct Current Dc Input Voltage
28 V
Input Maximum Input Current
35 A
Input Minimum Direct Current Dc Input Voltage
22.5 V
Output Maximum Output Voltage
27.5 V
Output Minimum Output Voltage
22 V
Output Output Current
30 A
Output Output Voltage
24 V
Product Compliance Reach Svhc Conformity Status
Compliant
Product Compliance Rohs Conformity Status
Compliant
Technical Data Approvals
UL 508 Listed | UL60950-1 Recognized
Technical Data Battery
12 A·h | 4 A·h | 7 A·h
Technical Data Battery Type
Lead Gel Battery | Lead-Acid
Technical Data Charging Current At 10 Ampere Hours Ah Power
2.5 A
Technical Data Charging Current At 2 5 Ampere Hours Ah Power
0.5 A
Technical Data Charging Current At 5 10 Ampere Hours Ah Power
1 A
Technical Data Maximum Nominal Charging Voltage
27.2 V
Technical Data Maximum Quick Charging Voltage
28.5 V
Technical Data Minimum Nominal Charging Voltage
26 V
