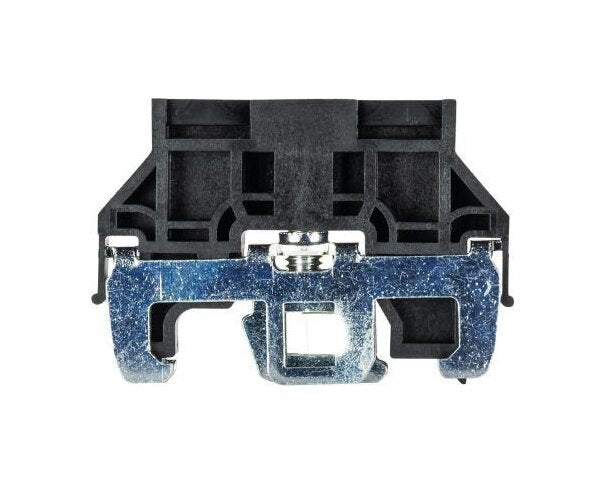

Wieland WE 1/U End Clamp for DIN Rail Terminal Blocks
Wieland WE 1/U End Clamp for DIN Rail Terminal Blocks
SKU:DIN-0e4eed
Securely mount rail TS 35/32 with Wieland WE 1/U End Clamp for DIN Rail Terminal Blocks. Black, V2 rated, screwable latching, 49mm length.
Regular price
$15.99
Regular price
Sale price
$15.99
Unit price
per
Initiate Order
Wieland WE 1/U End Clamp for DIN Rail Terminal Blocks
$15.99
Quantity: 1
Claim Your Seller Account
Wieland WE 1/U End Clamp for DIN Rail Terminal Blocks
$15.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wieland WE 1/U End Clamp is designed for easy, secure mounting of rail TS 35 and TS 32, ensuring stability and durability for your DIN Rail Terminal Blocks. This black end clamp features a V2 inflammability rating, measures 49mm in length, and offers screwable latching for convenient installation. Crafted from metal with a width of 8mm, it is compatible with DIN Rail (Top Hat Rail) measuring 35 x 7.5mm. Trust Wieland for reliable solutions that meet industry standards.
Product Specifications
Classification Eclass 81 Classification
27141135
Classification Etim 30 Classification
EC001041
Classification Etim 40 Classification
EC001041
Classification Etim 50 Classification
EC001041
Classification Etim 60 Classification
EC001041
Classification Etim 70 Classification
EC001041
General Brands
Wieland
General Color
Black
General Inflammability Class Of Insulation Material According Wi
V2
General Latching
Screwable
General Length
49 mm
General Material
Metal
General Model
WE 1/U
General Mounting Method
DIN Rail (Top Hat Rail)
General Mounting Size
35 x 7.5 mm
General Width Grid Dimension
8 mm
