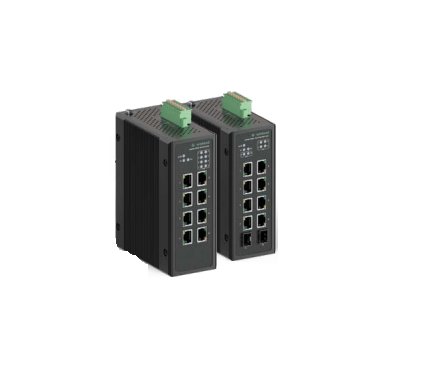

Wieland Wienet 10G-2SFP IP Switch
Wieland Wienet 10G-2SFP IP Switch
SKU:IPS-9e0c88
Enhance your network with Wieland's Wienet 10G-2SFP IP Switch. Reliable, efficient, and compliant with industry standards.
Regular price
$379.99
Regular price
Sale price
$379.99
Unit price
per
Initiate Order
Wieland Wienet 10G-2SFP IP Switch
$379.99
Quantity: 1
Claim Your Seller Account
Wieland Wienet 10G-2SFP IP Switch
$379.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your network infrastructure with the Wieland Wienet 10G-2SFP IP Switch. This advanced switch features 8 10/100/1000 RJ45 ports and 2 FOC/SFP ports for reliable data transmission. With IEEE standards compliance, store-and-forward transmission, and robust construction, this switch ensures efficient and secure network operations. Benefit from features like autonegotiation, jumbo frame support, and a durable metal housing, making it ideal for both consumer and institutional use.
Product Specifications
Dimensions Approximate Weight
700 g
Dimensions Dimensions W X H X D
54 x 145 x 113 mm
General Brands
Wieland
General Diagnosis Display
Light Emitting Diode (LED)
General Model
Wienet UMSA 10G-2SFP
General Rohs Certification
Yes
Specifications Note
Subject to technical modifications
Switch Properties Autocrossing Mdimdi X
Yes
Switch Properties Communication
Full Duplex | Half Duplex
Switch Properties Ethernet Standards Institute Of Electrical And
802.3/802.3u/802.3x/802.3ab/ 802.3af/802.1Q/802.1p/802.3az
Switch Properties Flow Control
Back Pressure and Pause Frame-Based Flow Control Schemes
Switch Properties Jumbo Frame
10 kB
Switch Properties Media Access Control Mac Address Table
16 K
Switch Properties Packet Buffer Size
2 MB
Switch Properties Topology
Lines | Mains | Mesh | Ring | Star
Switch Properties Transmission Length
2 km (FOC Single Mode) | 30 km (FOC Multi Mode)
Switch Properties Transmission Type
Store and Forward
Technical Data 101001000 Rj45 Ports
8
Technical Data Focsfp Ports
2
Technical Features Housing Material
Metal
Technical Features Maximum Operating Direct Current Dc Voltage
57 V
Technical Features Maximum Operating Temperature
75 ºC
Technical Features Maximum Output With Poe Ports
120 W
Technical Features Maximum Relative Humidity During Operation No
95 %
Technical Features Maximum Relay Output Direct Current Dc Voltag
24 V
Technical Features Maximum Storage Temperature
85 ºC
Technical Features Minimum Operating Direct Current Dc Voltage
12 V
Technical Features Minimum Operating Temperature
-40 ºC
Technical Features Minimum Relative Humidity During Operation No
5 %
Technical Features Minimum Storage Temperature
-40 ºC
Technical Features Mounting Method
DIN Rail
Technical Features Norms And Approvals
CE | cULus | FCC Part 15 Class A | UL
Technical Features Protection Class
IP30
Technical Features Redundant Power Supply
2 Power Inputs
Technical Features Relay Output Current
0.5 A
Technical Features Terminal Type
Pluggable Push-In Terminal
