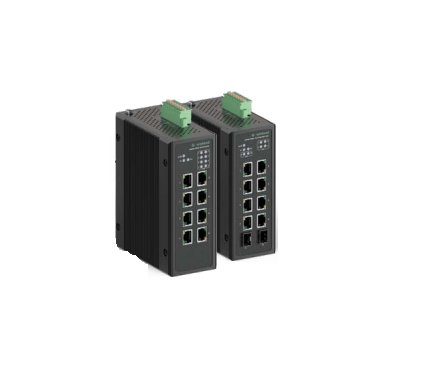

Wieland Wienet 10G-8PoE-2SFP-24V IP Switch
Wieland Wienet 10G-8PoE-2SFP-24V IP Switch
SKU:IPS-f6ac7b
Experience high-performance networking with the Wieland Wienet 10G-8PoE-2SFP-24V IP Switch. Robust, reliable, and compliant for government procurement.
Regular price
$289.99
Regular price
Sale price
$289.99
Unit price
per
Initiate Order
Wieland Wienet 10G-8PoE-2SFP-24V IP Switch
$289.99
Quantity: 1
Claim Your Seller Account
Wieland Wienet 10G-8PoE-2SFP-24V IP Switch
$289.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wieland Wienet UMSA 10G-8PoE-2SFP-24V Switch is a high-performance solution designed for demanding networking environments. With 8 PoE ports, 2 SFP ports, and robust IEEE Ethernet standards compliance, this switch ensures reliable data transmission. It features a durable metal housing, DIN rail mounting, and wide operating temperature range for versatile deployment. The switch also meets CE, cULus, FCC Part 15 Class A, and UL standards, making it ideal for government and institutional procurement that prioritize quality and reliability.
Product Specifications
Dimensions Approximate Weight
700 g
Dimensions Dimensions W X H X D
54 x 145 x 113 mm
General Brands
Wieland
General Diagnosis Display
Light Emitting Diode (LED)
General Model
Wienet UMSA 10G-8PoE-2SFP-24V
General Rohs Certification
Yes
Specifications Note
Subject to technical modifications
Switch Properties Autocrossing Mdimdi X
Yes
Switch Properties Communication
Full Duplex | Half Duplex
Switch Properties Ethernet Standards Institute Of Electrical And
802.3/802.3u/802.3x/802.3ab/ 802.3af/802.1Q/802.1p/802.3az
Switch Properties Flow Control
Back Pressure and Pause Frame-Based Flow Control Schemes
Switch Properties Jumbo Frame
10 kB
Switch Properties Media Access Control Mac Address Table
16
Switch Properties Packet Buffer Size
2 MB
Switch Properties Topology
Lines | Mains | Mesh | Ring | Star
Switch Properties Transmission Length
2 km (FOC Single Mode) | 30 km (FOC Multi Mode)
Switch Properties Transmission Type
Store and Forward
Technical Data 101001000 Rj45 Ports
8
Technical Data Focsfp Ports
2
Technical Data Poe Ports
8
Technical Features Housing Material
Metal
Technical Features Maximum Operating Direct Current Dc Voltage
57 V
Technical Features Maximum Operating Temperature
75 ºC
Technical Features Maximum Output With Poe Ports
120 W
Technical Features Maximum Relative Humidity During Operation No
95 %
Technical Features Maximum Relay Output Direct Current Dc Voltag
24 V
Technical Features Maximum Storage Temperature
85 ºC
Technical Features Minimum Operating Direct Current Dc Voltage
12 V
Technical Features Minimum Operating Temperature
-40 ºC
Technical Features Minimum Relative Humidity During Operation No
5 %
Technical Features Minimum Storage Temperature
-40 ºC
Technical Features Mounting Method
DIN Rail
Technical Features Norms And Approvals
CE | cULus | FCC Part 15 Class A | UL
Technical Features Protection Class
IP30
Technical Features Redundant Power Supply
2 Power Inputs
Technical Features Relay Output Current
0.5 A
Technical Features Terminal Type
Pluggable Push-In Terminal
