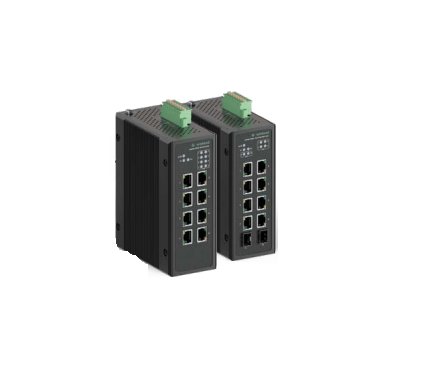

Wieland Wienet 8-Port PoE Ethernet Switch
Wieland Wienet 8-Port PoE Ethernet Switch
SKU:IPS-9f0ad0
Wieland Wienet 8-Port PoE Switch - Reliable, IEEE-compliant solution for Government & Commercial needs
Regular price
$289.99
Regular price
Sale price
$289.99
Unit price
per
Initiate Order
Wieland Wienet 8-Port PoE Ethernet Switch
$289.99
Quantity: 1
Claim Your Seller Account
Wieland Wienet 8-Port PoE Ethernet Switch
$289.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wieland Wienet UMSA 8G-8PoE-24V Switch is a robust and reliable networking solution designed for both commercial and government applications. With 8 PoE ports delivering a maximum of 120W, this switch supports IEEE standards ensuring seamless communication. It features a durable metal housing, DIN rail mounting, and a wide operating temperature range (-40°C to 75°C) for versatile deployment. With certifications like CE, FCC, and UL, this switch meets stringent industry standards, making it ideal for federal procurement and institutional buyers.
Product Specifications
Dimensions Approximate Weight
700 g
Dimensions Dimensions W X H X D
54 x 145 x 113 mm
General Brands
Wieland
General Diagnosis Display
Light Emitting Diode (LED)
General Model
Wienet UMSA 8G-8PoE-24V
General Rohs Certification
Yes
Specifications Note
Subject to technical modifications
Switch Properties Autocrossing Mdimdi X
Yes
Switch Properties Communication
Full Duplex | Half Duplex
Switch Properties Ethernet Standards Institute Of Electrical And
802.3/802.3u/802.3x/802.3ab/ 802.3af/802.1Q/802.1p/802.3az
Switch Properties Flow Control
Back Pressure and Pause Frame-Based Flow Control Schemes
Switch Properties Jumbo Frame
10 kB
Switch Properties Media Access Control Mac Address Table
16 K
Switch Properties Packet Buffer Size
2 MB
Switch Properties Topology
Lines | Mains | Mesh | Ring | Star
Switch Properties Transmission Length
100 mm
Switch Properties Transmission Type
Store and Forward
Technical Data 101001000 Rj45 Ports
8
Technical Data Poe Ports
8
Technical Features Housing Material
Metal
Technical Features Maximum Operating Direct Current Dc Voltage
57 V
Technical Features Maximum Operating Temperature
75 ºC
Technical Features Maximum Output With Poe Ports
120 W
Technical Features Maximum Relative Humidity During Operation No
95 %
Technical Features Maximum Relay Output Direct Current Dc Voltag
24 V
Technical Features Maximum Storage Temperature
85 ºC
Technical Features Minimum Operating Direct Current Dc Voltage
12 V
Technical Features Minimum Operating Temperature
-40 ºC
Technical Features Minimum Relative Humidity During Operation No
5 %
Technical Features Minimum Storage Temperature
-40 ºC
Technical Features Mounting Method
DIN Rail
Technical Features Norms And Approvals
CE | cULus | FCC Part 15 Class A | UL
Technical Features Protection Class
IP30
Technical Features Redundant Power Supply
2 Power Inputs
Technical Features Relay Output Current
0.5 A
Technical Features Terminal Type
Pluggable Push-In Terminal
