Wieland Wienet L2MS 12-4G-4SFP IP Switch
Wieland Wienet L2MS 12-4G-4SFP IP Switch
SKU:IPS-772ffe
Wieland Wienet L2MS 12-4G-4SFP IP Switch: Robust, manageable, and reliable for industrial networking needs.
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
Wieland Wienet L2MS 12-4G-4SFP IP Switch
$349.99
Quantity: 1
Claim Your Seller Account
Wieland Wienet L2MS 12-4G-4SFP IP Switch
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

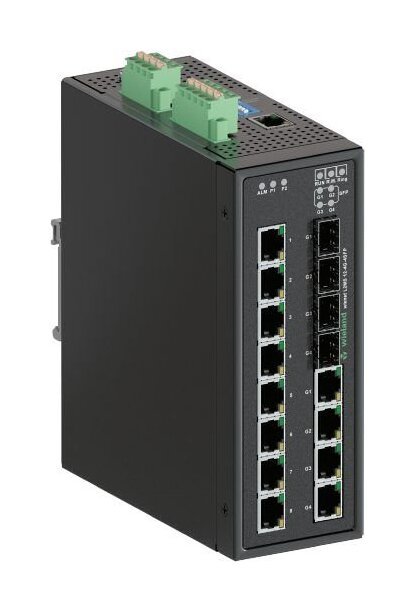

The Wieland Wienet L2MS 12-4G-4SFP Switch is a high-performance industrial switch designed for robust networking environments. With a sturdy metal housing, this switch offers IP30 protection and is manageable, supporting protocols like Ethernet-IP, Modbus-TCP, and Profinet. Featuring 8x RJ45 10/100 Mbps ports and 4x 10/100/1000 RJ45 ports, it ensures reliable connectivity. With redundant power supply inputs and a wide operating temperature range from -20 to 70 °C, this switch is ideal for demanding industrial applications. The DIN rail mounting and compact dimensions make installation easy and efficient.
Product Specifications
Classification Eclass 81 Classification
19170106
Classification Etim 40 Classification
EC000734
Classification Etim 50 Classification
EC000734
Classification Etim 60 Classification
EC000734
Classification Etim 70 Classification
EC000734

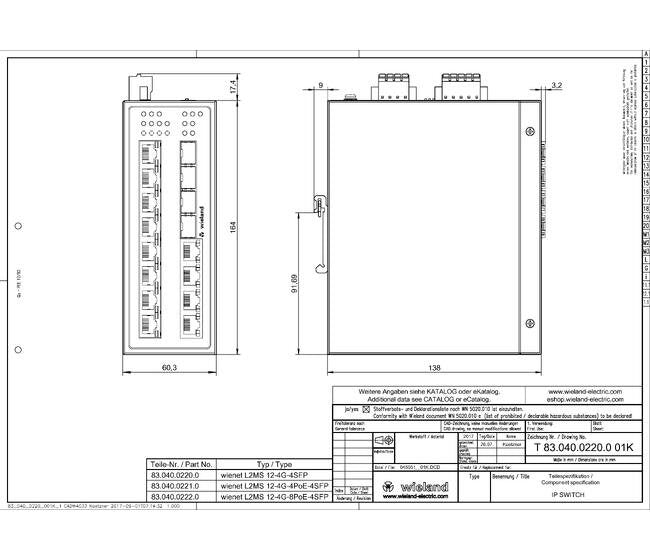

Dimensions Dimensions W X H X D
60.3 x 164 x 138 mm
Dimensions Weight
800 g
General 10 Gigabit Ethernet
No
General Brands
Wieland
General Connector Cross Section
0.25 to 2.5 AWG
General Degree Of Protection Ip
IP30
General Ethernet
Yes
General Fast Ethernet
Yes
General Led Status Indication
4xSFP | ALM | P1 | P2 | R.M. | Ring | RUN
General Manageable
Yes
General Model
Wienet L2MS 12-4G-4SFP
General Number Of Ports 100 Mbps Sc
0
General Power Over Ethernet
No
General Supported Protocols
Ethernet-IP | Modbus-TCP | Profinet (CC A, CC B)
General Type Of Electric Connection
Push-In Connection | True
General Wire Strip Length
9 mm
Product Compliance Reach Svhc Conformity Status
Compliant
Supply Circuit Maximum Input Current
2 A
Supply Circuit Maximum Operating Voltage
57 V
Supply Circuit Maximum Relative Humidity Rh
95 %
Supply Circuit Maximum Transport And Storage Temperature
85 ºC
Supply Circuit Minimum Operating Voltage
9 V
Supply Circuit Minimum Relative Humidity Rh
5 %
Supply Circuit Minimum Transport And Storage Temperature
-40 ºC
Supply Circuit Net Weight
800 g
Technical Data 101001000 Rj45 Ports
4
Technical Data 10100 Mbps Ports
8x RJ45
Technical Data Voltage Type
Direct Current (DC)
Technical Features Housing Material
Metal
Technical Features Maximum Operating Temperature
70 ºC
Technical Features Minimum Operating Temperature
-20 ºC
Technical Features Mounting Method
DIN Rail (Top Hat Rail)
Technical Features Redundant Power Supply
2 Power Inputs
