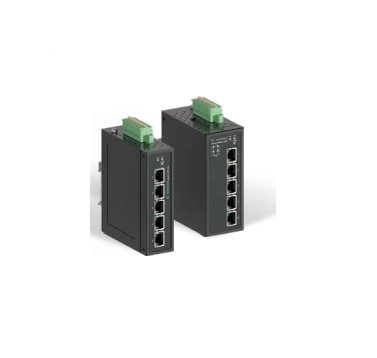

Wieland Wienet Managed 5-Port IP Switch with SFP Port
Wieland Wienet Managed 5-Port IP Switch with SFP Port
SKU:IPS-9eaf6d
Advanced IP switch with 4 RJ45 ports, 1 SFP port, and robust IEEE standards compliance for reliable networking.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
Wieland Wienet Managed 5-Port IP Switch with SFP Port
$299.99
Quantity: 1
Claim Your Seller Account
Wieland Wienet Managed 5-Port IP Switch with SFP Port
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wieland Wienet UMS 5-C-4G-1SFP-W Switch is a high-performance managed IP switch designed to meet the demanding networking needs of both consumer and institutional buyers. With 4 10/100/1000 RJ45 ports, 1 FOC/SFP port, and a robust feature set including broadcast storm protection, auto-sensing, and full/half-duplex communication, this switch ensures reliable data transmission. It complies with industry standards such as IEEE 802.3/802.3u/x/ab/z and undergoes rigorous testing to achieve RoHS, CE, cULus, FCC Part 15 Class A, UL, and UL 62368 certifications.
Product Specifications
Dimensions Approximate Weight
450 g
Dimensions Dimensions W X H X D
30 x 140 x 95 mm
General Brands
Wieland
General Diagnosis Display
Light Emitting Diode (LED)
General Model
Wienet UMS 5-C-4G-1SFP-W
General Rohs Certification
Yes
Specifications Note
Subject to technical modifications
Switch Properties Autonegotiation
Yes
Switch Properties Autopolarity
Yes
Switch Properties Autosensing
Yes
Switch Properties Broadcast Storm Protection
Yes
Switch Properties Communication
Full Duplex | Half Duplex
Switch Properties Ethernet Standards Institute Of Electrical And
802.3/802.3u/x/ab/z
Switch Properties Ethernet Transmission Length
100 mm
Switch Properties Jumbo Frame
10 kB
Switch Properties Media Access Control Mac Address Table
2 K
Switch Properties Optical Transmission Length
10 km
Switch Properties Packet Buffer Size
1 MB
Switch Properties Topology
Line | Mesh | Star
Switch Properties Transmission Type
Store and Forward
Technical Data 101001000 Rj45 Ports
4
Technical Data Focsfp Ports
1
Technical Features Housing Material
Metal
Technical Features Maximum Operating Direct Current Dc Voltage
48 V
Technical Features Maximum Operating Temperature
75 ºC
Technical Features Maximum Power Consumption
2.5 W
Technical Features Maximum Relative Humidity During Operation No
95 %
Technical Features Maximum Relay Output Direct Current Dc Voltag
24 V
Technical Features Maximum Storage Temperature
85 ºC
Technical Features Minimum Operating Direct Current Dc Voltage
12 V
Technical Features Minimum Operating Temperature
-40 ºC
Technical Features Minimum Relative Humidity During Operation No
10 %
Technical Features Minimum Storage Temperature
-40 ºC
Technical Features Mounting Method
DIN Rail
Technical Features Norms And Approvals
CE | cULus | FCC Part 15 Class A | UL | UL 62368
Technical Features Protection Class
IP30
Technical Features Redundant Power Supply
2 Power Inputs
Technical Features Relay Output Current
1 A
Technical Features Terminal Type
Pluggable Push-In Terminal
