Wieland Wienet UMS16 Ethernet Switch
Wieland Wienet UMS16 Ethernet Switch
SKU:IPS-e82b37
Efficient Wieland Wienet UMS16 Ethernet Switch for industrial applications, featuring 16 RJ45 ports, autonegotiation, and sturdy metal housing with IP30 protection.
Regular price
$249.99
Regular price
Sale price
$249.99
Unit price
per
Initiate Order
Wieland Wienet UMS16 Ethernet Switch
$249.99
Quantity: 1
Claim Your Seller Account
Wieland Wienet UMS16 Ethernet Switch
$249.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

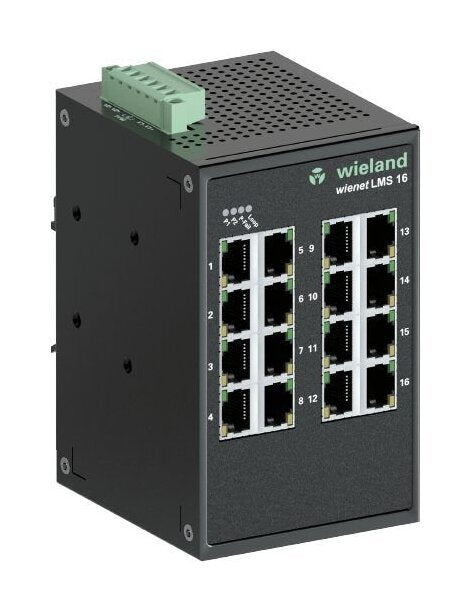

The Wieland Wienet UMS16 Switch is a reliable IP switch designed for industrial applications. With 16 RJ45 ports for 10/100 Mbps connections, this switch offers efficient data transmission with autonegotiation and autosensing capabilities. It features LED diagnostic displays for easy monitoring and IEEE Ethernet standards compliance. With a sturdy metal housing and DIN rail mounting, it meets IP30 protection standards and operates in extreme temperatures. This switch is CE, cULus, FCC, and UL approved, ensuring compliance with industry norms and standards.
Product Specifications
Classification Eclass 81 Classification
19170106
Classification Etim 40 Classification
EC000734
Classification Etim 50 Classification
EC000734
Classification Etim 60 Classification
EC000734
Classification Etim 70 Classification
EC000734
Dimensions Approximate Weight
700 g

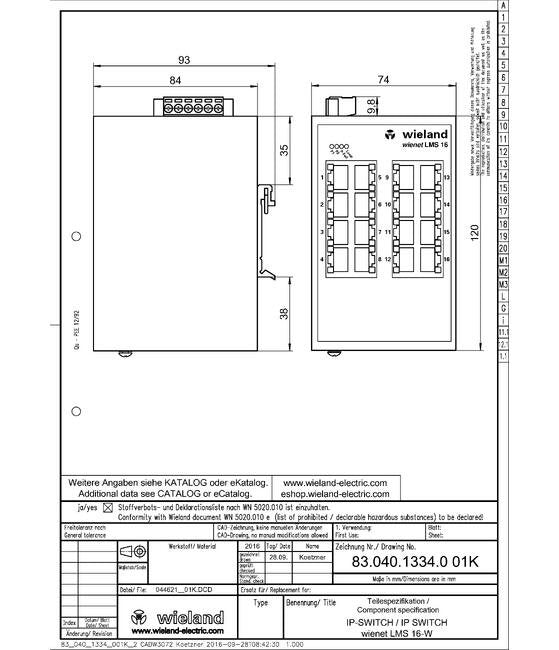

Dimensions Dimensions W X H X D
74 x 120 x 84 mm
General 10 Gigabit Ethernet
No
General Brands
Wieland
General Degree Of Protection Ip
IP30
General Diagnosis Display
Light Emitting Diode (LED)
General Diagnostic Leds
Data | Data rate | Link status | Power
General Ethernet
Yes
General Fast Ethernet
Yes
General Gigabit Ethernet
No
General Manageable
No
General Model
Wienet UMS16
General Number Of 100 Mbps St Ports
0
General Number Of Ports 100 Mbps Sc
0
General Power Over Ethernet
No
General Rohs Certification
Yes
Product Compliance Reach Svhc Conformity Status
Compliant
Specifications Note
Subject to technical modifications
Supply Circuit Maximum Operating Voltage
30 V
Supply Circuit Minimum Operating Voltage
9 V
Switch Properties Autonegotiation
Yes
Switch Properties Autopolarity
Yes
Switch Properties Autosensing
Yes
Switch Properties Communication
Full Duplex | Half Duplex
Switch Properties Ethernet Standards Institute Of Electrical And
802.3/802.3u/802.3x
Switch Properties Topology
Line | Mesh | Star
Switch Properties Transmission Length
100 mm
Switch Properties Transmission Type
Store and Forward
Technical Data 10100 Mbps Ports
16x RJ45
Technical Data Voltage Type
Direct Current (DC)
Technical Features Housing Material
Metal
Technical Features Maximum Operating Direct Current Dc Voltage
52.8 V
Technical Features Maximum Power Consumption
3.84 W
Technical Features Minimum Operating Direct Current Dc Voltage
8.4 V
Technical Features Redundant Power Supply
2 Power Inputs
