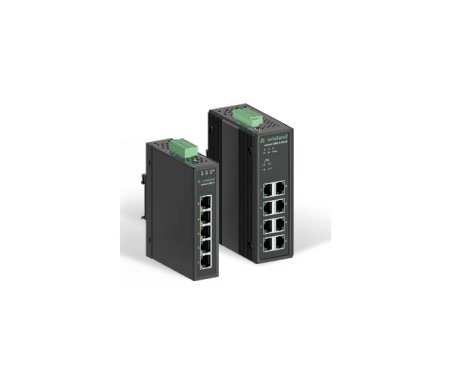

Wieland Wienet UMS4-1FS IP Switch
Wieland Wienet UMS4-1FS IP Switch
SKU:IPS-aed052
High-performance Wieland IP Switch with LED diagnosis, RoHS certified, IEEE compliant, ideal for industrial use.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
Wieland Wienet UMS4-1FS IP Switch
$129.99
Quantity: 1
Claim Your Seller Account
Wieland Wienet UMS4-1FS IP Switch
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wieland Wienet UMS4-1FS Switch is a robust and efficient networking solution designed for high-performance data transmission. With 4 10/100 Mbps RJ45 ports and 1 SC single-mode FOC/SFP port, this switch ensures reliable connectivity. It features LED diagnosis display, RoHS certification, IEEE Ethernet standards compliance, autonegotiation, autosensing, and autopolarity. Suitable for various topologies including line, mesh, and star, it offers a store-and-forward transmission type with full/half duplex communication. With a metal housing, DIN rail mounting, and IP30 protection class, this switch is ideal for industrial applications. Meets CE, cULus, FCC, and UL standards.
Product Specifications
Dimensions Approximate Weight
260 g
Dimensions Dimensions W X H X D
45.3 x 90 x 90.5 mm
General Brands
Wieland
General Diagnosis Display
Light Emitting Diode (LED)
General Model
Wienet UMS4-1FS
General Rohs Certification
Yes
Specifications Note
Subject to technical modifications
Switch Properties Autonegotiation
Yes
Switch Properties Autopolarity
Yes
Switch Properties Autosensing
Yes
Switch Properties Communication
Full Duplex | Half Duplex
Switch Properties Ethernet Standards Institute Of Electrical And
802.3/802.3u/802.3x
Switch Properties Topology
Line | Mesh | Star
Switch Properties Transmission Length
20 km
Switch Properties Transmission Type
Store and Forward
Technical Data 10100 Mbps Ports
4x RJ45
Technical Data Focsfp Ports
1 x SC (Single Mode)
Technical Features Housing Material
Metal
Technical Features Maximum Operating Direct Current Dc Voltage
30 V
Technical Features Maximum Operating Temperature
70 ºC
Technical Features Maximum Power Consumption
4.5 W
Technical Features Maximum Relative Humidity During Operation No
95 %
Technical Features Maximum Storage Temperature
85 ºC
Technical Features Minimum Operating Direct Current Dc Voltage
9 V
Technical Features Minimum Operating Temperature
-10 ºC
Technical Features Minimum Relative Humidity During Operation No
5 %
Technical Features Minimum Storage Temperature
-40 ºC
Technical Features Mounting Method
DIN Rail
Technical Features Norms And Approvals
CE | cULus | FCC Part 15 Class A | UL
Technical Features Protection Class
IP30
Technical Features Redundant Power Supply
2 Power Inputs
Technical Features Terminal Type
Pluggable Push-In Terminal
