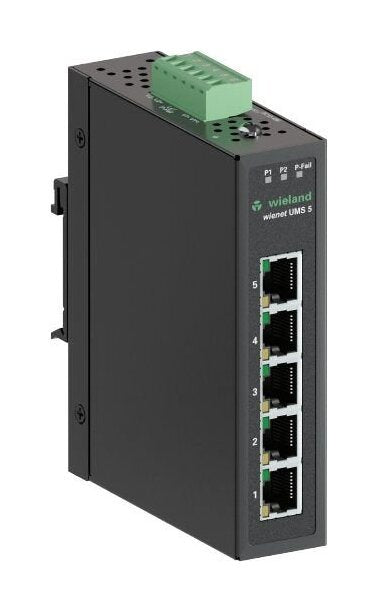

Wieland Wienet UMS5 Ethernet IP Switch
Wieland Wienet UMS5 Ethernet IP Switch
SKU:IPS-67a04d
Wieland Wienet UMS5 Switch - Reliable 5-port IP switch with autonegotiation and robust metal housing. Ideal for industrial applications.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
Wieland Wienet UMS5 Ethernet IP Switch
$129.99
Quantity: 1
Claim Your Seller Account
Wieland Wienet UMS5 Ethernet IP Switch
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wieland Wienet UMS5 Switch is a high-quality IP switch designed for reliable Ethernet connectivity. With 5x RJ45 10/100 Mbps ports, autonegotiation, and autosensing capabilities, this switch ensures seamless communication in full duplex or half duplex mode. It features a robust metal housing with IP30 protection class, CE, cULus, FCC Part 15 Class A, and UL certifications, making it suitable for industrial applications. Operating between -40°C to 75°C, this switch guarantees performance in extreme conditions. Suitable for government and institutional procurement needs, it complies with REACH-SVHC standards and offers DIN rail mounting for easy installation.
Product Specifications
Classification Eclass 81 Classification
19170106
Classification Etim 30 Classification
EC000734
Classification Etim 40 Classification
EC000734
Classification Etim 50 Classification
EC000734
Classification Etim 60 Classification
EC000734
Classification Etim 70 Classification
EC000734
Dimensions Approximate Weight
255 g

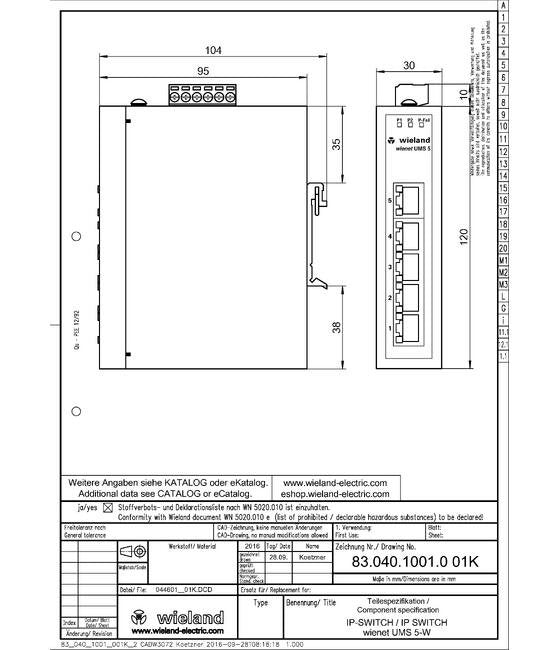

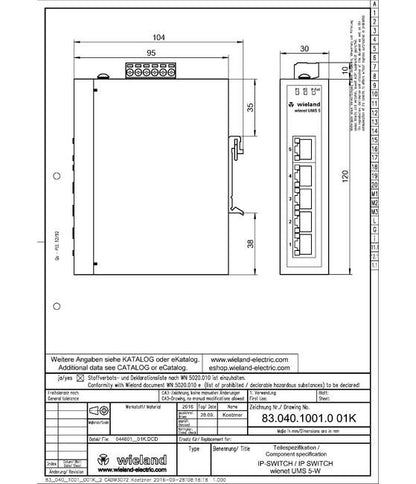

Dimensions Dimensions W X H X D
30 x 120 x 95 mm
General 10 Gigabit Ethernet
No
General Brands
Wieland
General Degree Of Protection Ip
IP30
General Diagnosis Display
Light Emitting Diode (LED)
General Diagnostic Leds
10 | 100T(x): Link | Activity | Collision | Duplex | P1 | P2 | P-Fail
General Ethernet
Yes
General Fast Ethernet
Yes
General Gigabit Ethernet
No
General Manageable
No
General Model
Wienet UMS5
General Number Of 100 Mbps St Ports
0
General Number Of Ports 100 Mbps Sc
0
General Power Over Ethernet
No
General Rohs Certification
Yes
Product Compliance Reach Svhc Conformity Status
Compliant
Specifications Note
Subject to technical modifications
Supply Circuit Maximum Operating Voltage
48 V
Supply Circuit Minimum Operating Voltage
12 V
Switch Properties Autonegotiation
Yes
Switch Properties Autopolarity
Yes
Switch Properties Autosensing
Yes
Switch Properties Communication
Full Duplex | Half Duplex
Switch Properties Ethernet Standards Institute Of Electrical And
802.3/802.3u/802.3x
Switch Properties Topology
Line | Mesh | Star
Switch Properties Transmission Length
100 mm
Switch Properties Transmission Type
Store and Forward
Technical Data Voltage Type
Direct Current (DC)
Technical Features Housing Material
Metal
Technical Features Maximum Operating Direct Current Dc Voltage
48 V
Technical Features Maximum Power Consumption
4.5 W
Technical Features Minimum Operating Direct Current Dc Voltage
12 V
Technical Features Redundant Power Supply
2 Power Inputs
