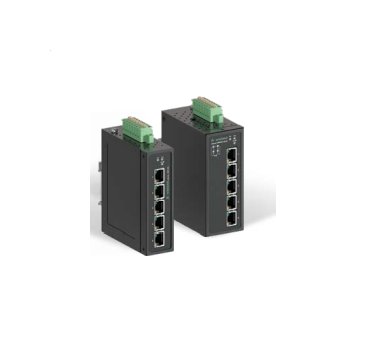

Wieland Wienet UMS5G-4PoE IP Switch
Wieland Wienet UMS5G-4PoE IP Switch
SKU:IPS-f1f6cd
Enhance network performance with the Wieland Wienet UMS5G-4PoE IP Switch. Ideal for consumer and institutional buyers.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
Wieland Wienet UMS5G-4PoE IP Switch
$129.99
Quantity: 1
Claim Your Seller Account
Wieland Wienet UMS5G-4PoE IP Switch
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wieland Wienet UMS5G-4PoE Switch is a top-notch IP switch designed to meet the demanding networking needs of both consumer and institutional buyers. With 5 10/100/1000 RJ45 ports, including 4 PoE ports, this switch offers seamless data transmission with features like store and forward technology, autonegotiation, and autosensing capabilities. It operates in full/half duplex modes and complies with IEEE 802.3 standards. The switch is RoHS certified and boasts a sturdy metal housing, IP30 protection class, and DIN rail mounting, ensuring robustness and easy installation.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Dimensions Approximate Weight
255 g
Dimensions Dimensions W X H X D
45.3 x 90 x 110 mm
General Brands
Wieland
General Diagnosis Display
Light Emitting Diode (LED)
General Model
Wienet UMS5G-4PoE
General Rohs Certification
Yes
Specifications Note
Subject to technical modifications
Switch Properties Autonegotiation
Yes
Switch Properties Autopolarity
Yes
Switch Properties Autosensing
Yes
Switch Properties Communication
Full Duplex | Half Duplex
Switch Properties Ethernet Standards Institute Of Electrical And
802.3/802.3u/x/ab
Switch Properties Flow Control
Back Pressure and Pause Frame-Based Flow Control Schemes
Switch Properties Jumbo Frame
9 kB
Switch Properties Topology
Line | Mesh | Star
Switch Properties Transmission Length
100 mm
Switch Properties Transmission Type
Store and Forward
Technical Data 101001000 Rj45 Ports
5
Technical Data Poe Ports
4
Technical Features Housing Material
Metal
Technical Features Maximum Operating Direct Current Dc Voltage
30 V
Technical Features Maximum Operating Temperature
70 ºC
Technical Features Maximum Power Consumption
4.5 W
Technical Features Maximum Relative Humidity During Operation No
95 %
Technical Features Maximum Storage Temperature
85 ºC
Technical Features Minimum Operating Direct Current Dc Voltage
9 V
Technical Features Minimum Operating Temperature
-10 ºC
Technical Features Minimum Relative Humidity During Operation No
5 %
Technical Features Minimum Storage Temperature
-40 ºC
Technical Features Mounting Method
DIN Rail
Technical Features Norms And Approvals
CE | cULus | EN50155 | FCC Part 15 Class A | UL | UL61010-2-201 | ULC1D2/ATEX Zone 2
Technical Features Protection Class
IP30
Technical Features Redundant Power Supply
2 Power Inputs
Technical Features Terminal Type
Pluggable Push-In Terminal
