Wieland Wienet UMS6-L Managed IP Switch
Wieland Wienet UMS6-L Managed IP Switch
SKU:IPS-7f5306
Enhance your network performance with Wieland Wienet UMS6-L Managed IP Switch. Reliable, efficient, and compliant with industry standards.
Regular price
$189.99
Regular price
Sale price
$189.99
Unit price
per
Initiate Order
Wieland Wienet UMS6-L Managed IP Switch
$189.99
Quantity: 1
Claim Your Seller Account
Wieland Wienet UMS6-L Managed IP Switch
$189.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

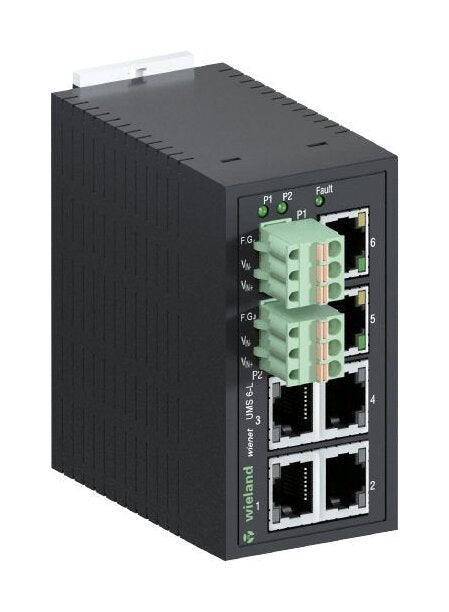

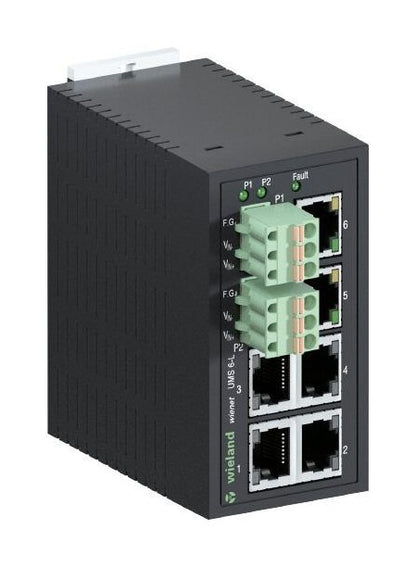

The Wieland Wienet UMS6-L Managed IP Switch is a high-quality networking solution designed for reliable performance. With 6x RJ45 ports supporting 10/100 Mbps speeds, this switch offers efficient data transmission using IEEE 802.3 standards. Features like autonegotiation, autosensing, and broadcast storm protection enhance network stability. Compliant with RoHS, CE, cULus, FCC Part 15 Class A, and UL standards, this switch ensures safety and reliability in diverse environments.
Product Specifications
Classification Eclass 81 Classification
19170106
Classification Etim 30 Classification
EC000734
Classification Etim 40 Classification
EC000734
Classification Etim 50 Classification
EC000734
Classification Etim 60 Classification
EC000734
Classification Etim 70 Classification
EC000734
Dimensions Approximate Weight
160 g

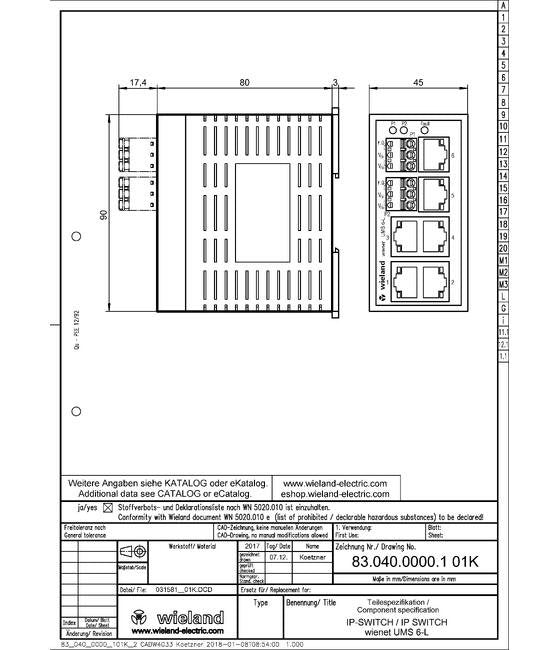

Dimensions Dimensions W X H X D
45 x 90 x 80 mm
General 10 Gigabit Ethernet
No
General Brands
Wieland
General Degree Of Protection Ip
IP40
General Diagnosis Display
Light Emitting Diode (LED)
General Diagnostic Leds
Data | Data rate | Link status | Power
General Ethernet
Yes
General Fast Ethernet
Yes
General Gigabit Ethernet
No
General Manageable
No
General Model
Wienet UMS6-L
General Number Of 100 Mbps St Ports
0
General Number Of Ports 100 Mbps Sc
0
General Power Over Ethernet
No
General Rohs Certification
Yes
Product Compliance Reach Svhc Conformity Status
Compliant
Specifications Note
Subject to technical modifications
Supply Circuit Maximum Operating Voltage
30 V
Supply Circuit Minimum Operating Voltage
9 V
Switch Properties Autonegotiation
Yes
Switch Properties Autopolarity
Yes
Switch Properties Autosensing
Yes
Switch Properties Broadcast Storm Protection
Yes
Switch Properties Communication
Full Duplex | Half Duplex
Switch Properties Ethernet Standards Institute Of Electrical And
802.3/802.3u/802.3x
Switch Properties Topology
Line | Mesh | Star
Switch Properties Transmission Length
100 mm
Technical Data Voltage Type
Direct Current (DC)
Technical Features Housing Material
Plastic
Technical Features Maximum Operating Direct Current Dc Voltage
30 V
Technical Features Maximum Power Consumption
4.5 W
Technical Features Minimum Operating Direct Current Dc Voltage
9 V
Technical Features Redundant Power Supply
2 Power Inputs
