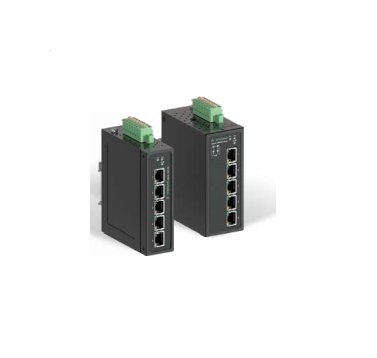

Wieland Wienet UMS8G-C IP Switch
Wieland Wienet UMS8G-C IP Switch
SKU:IPS-2e4d7d
Wieland Wienet UMS8G-C IP Switch - High-performance network switch for secure and efficient data transmission.
Regular price
$189.99
Regular price
Sale price
$189.99
Unit price
per
Initiate Order
Wieland Wienet UMS8G-C IP Switch
$189.99
Quantity: 1
Claim Your Seller Account
Wieland Wienet UMS8G-C IP Switch
$189.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wieland Wienet UMS8G-C Switch is a high-performance IP switch designed for robust networking solutions. With 8 RJ45 ports supporting 10/100/1000 speeds, this switch offers reliable data transmission using store and forward technology. It features autonegotiation, autosensing, and autopolarity for seamless operation. With IEEE 802.3/802.3u/x/ab support, Jumbo Frame capability, and a durable metal housing with DIN Rail mounting, this switch ensures secure and efficient networking in diverse environments.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Dimensions Approximate Weight
450 g
Dimensions Dimensions W X H X D
30 x 140 x 95 mm
General Brands
Wieland
General Diagnosis Display
Light Emitting Diode (LED)
General Model
Wienet UMS8G-C
General Rohs Certification
Yes
Specifications Note
Subject to technical modifications
Switch Properties Autonegotiation
Yes
Switch Properties Autopolarity
Yes
Switch Properties Autosensing
Yes
Switch Properties Communication
Full Duplex | Half Duplex
Switch Properties Ethernet Standards Institute Of Electrical And
802.3/802.3u/x/ab
Switch Properties Jumbo Frame
10 kB
Switch Properties Topology
Line | Mesh | Star
Switch Properties Transmission Length
100 mm
Switch Properties Transmission Type
Store and Forward
Technical Data 101001000 Rj45 Ports
8
Technical Features Housing Material
Metal
Technical Features Maximum Operating Direct Current Dc Voltage
48 V
Technical Features Maximum Operating Temperature
60 ºC
Technical Features Maximum Power Consumption
5.8 W
Technical Features Maximum Relative Humidity During Operation No
95 %
Technical Features Maximum Relay Output Direct Current Dc Voltag
24 V
Technical Features Maximum Storage Temperature
85 ºC
Technical Features Minimum Operating Direct Current Dc Voltage
12 V
Technical Features Minimum Operating Temperature
-10 ºC
Technical Features Minimum Relative Humidity During Operation No
10 %
Technical Features Minimum Storage Temperature
-40 ºC
Technical Features Mounting Method
DIN Rail
Technical Features Norms And Approvals
CE | cULus | FCC Part 15 Class A | UL | UL 62368
Technical Features Protection Class
IP30
Technical Features Redundant Power Supply
2 Power Inputs
Technical Features Relay Output Current
1 A
Technical Features Terminal Type
Pluggable Push-In Terminal
