Wieland Wienet UMS8G IP Switch
Wieland Wienet UMS8G IP Switch
SKU:IPS-b42a3f
Enhance your network with the Wieland Wienet UMS8G Switch featuring 8 RJ45 ports, diagnostic LEDs, and robust build quality.
Regular price
$289.99
Regular price
Sale price
$289.99
Unit price
per
Initiate Order
Wieland Wienet UMS8G IP Switch
$289.99
Quantity: 1
Claim Your Seller Account
Wieland Wienet UMS8G IP Switch
$289.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

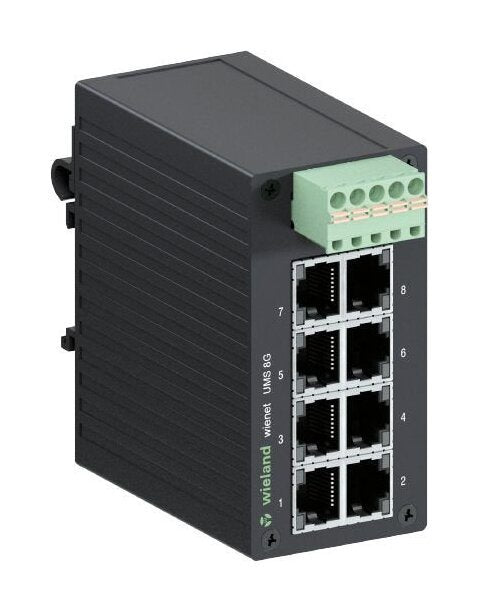

The Wieland Wienet UMS8G Switch is a high-performance networking solution designed for seamless data transmission. With 8 10/100/1000 RJ45 ports, this switch offers fast Ethernet and Gigabit Ethernet capabilities. It features diagnostic LEDs for monitoring data, data rate, link status, and power. The switch supports autonegotiation, autosensing, and autopolarity, ensuring efficient communication in full duplex or half duplex mode. Built with sturdy metal housing and DIN rail mounting, it complies with CE, cULus, FCC Part 15 Class A, IEC62368-1, UL, and UL60950-1 standards.
Product Specifications
Classification Eclass 81 Classification
19170106
Classification Etim 40 Classification
EC000734
Classification Etim 50 Classification
EC000734
Classification Etim 60 Classification
EC000734
Classification Etim 70 Classification
EC000734
Dimensions Approximate Weight
255 g

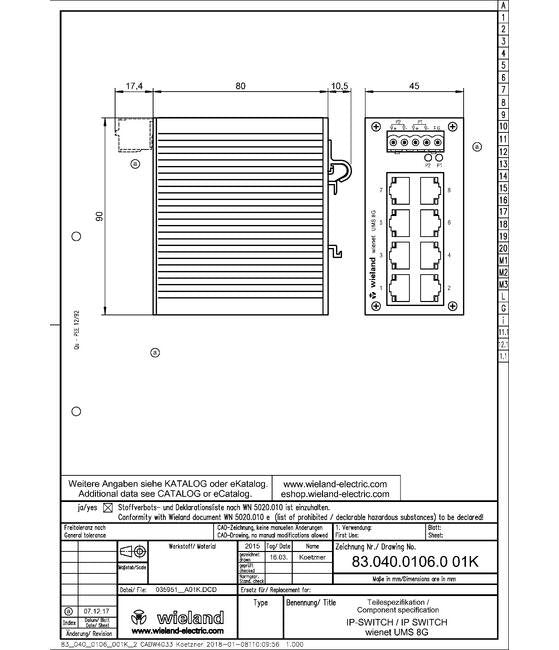

Dimensions Dimensions W X H X D
45.3 x 90 x 90.5 mm
General 10 Gigabit Ethernet
No
General Brands
Wieland
General Degree Of Protection Ip
IP50
General Diagnosis Display
Light Emitting Diode (LED)
General Diagnostic Leds
Data | Data rate | Link status | Power
General Ethernet
Yes
General Fast Ethernet
Yes
General Gigabit Ethernet
Yes
General Manageable
No
General Model
Wienet UMS8G
General Number Of 100 Mbps St Ports
0
General Number Of Ports 100 Mbps Sc
0
General Power Over Ethernet
No
General Rohs Certification
Yes
Product Compliance Reach Svhc Conformity Status
Compliant
Specifications Note
Subject to technical modifications
Supply Circuit Maximum Operating Voltage
48 V
Supply Circuit Minimum Operating Voltage
9 V
Switch Properties Autonegotiation
Yes
Switch Properties Autopolarity
Yes
Switch Properties Autosensing
Yes
Switch Properties Communication
Full Duplex | Half Duplex
Switch Properties Ethernet Standards Institute Of Electrical And
802.3/802.3u/x/ab
Switch Properties Flow Control
Back Pressure and Pause Frame-Based Flow Control Schemes
Switch Properties Jumbo Frame
9 kB
Switch Properties Topology
Line | Mesh | Star
Switch Properties Transmission Length
100 mm
Technical Data Voltage Type
Direct Current (DC)
Technical Features Housing Material
Metal
Technical Features Maximum Operating Direct Current Dc Voltage
30 V
Technical Features Maximum Power Consumption
4.5 W
Technical Features Minimum Operating Direct Current Dc Voltage
9 V
Technical Features Redundant Power Supply
2 Power Inputs
