Wieland Wipos P1 12-5 Basic Line Power Supply
Wieland Wipos P1 12-5 Basic Line Power Supply
SKU:POW-c8c2ca
Reliable Wieland Wipos P1 12-5 Basic Line Power Supply with 12V DC / 5A output, short-circuit protection, and RoHS compliance.
Regular price
$79.99
Regular price
Sale price
$79.99
Unit price
per
Initiate Order
Wieland Wipos P1 12-5 Basic Line Power Supply
$79.99
Quantity: 1
Claim Your Seller Account
Wieland Wipos P1 12-5 Basic Line Power Supply
$79.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wieland Wipos P1 12-5 Basic Line Power Supply is a reliable switch-mode power supply designed for both consumer and institutional use. With a nominal voltage of 12 V DC and a continuous current of 5 A, it offers a setting range of 12-14 V DC, ensuring stable power output. This power supply features sustained short-circuit protection and an input voltage range of 85-264 V AC / 90-375V DC, making it versatile and safe for various applications. Additionally, it meets industry standards for RoHS and REACH-SVHC conformity.
Product Specifications
Classification Eclass 81 Classification
27049002
Classification Etim 50 Classification
EC002540
Classification Etim 60 Classification
EC002540
Classification Etim 70 Classification
EC002540

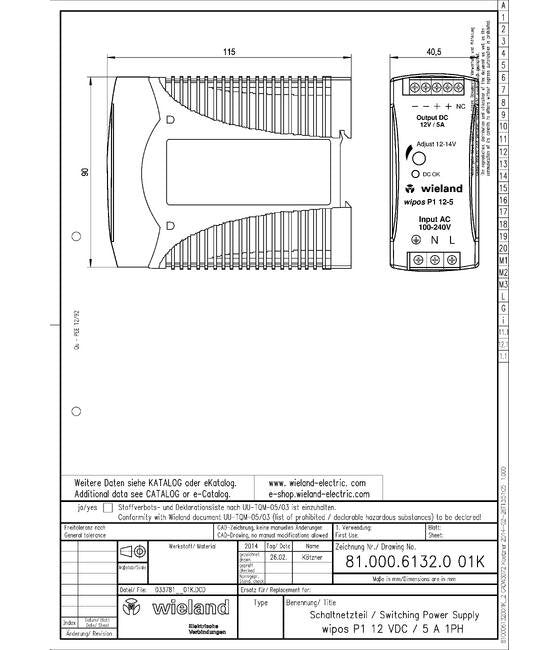

Dimensions Depth
115 mm
Dimensions Height
91 mm
Dimensions Horizontal Mounting Distance
25 mm
Dimensions Vertical Mounting Distance
25 mm
Dimensions Weight
340 g
Dimensions Width
40.5 mm
General Brands
Wieland
General Connection Type
Screw Connection
General Continuous Current
5 A
General Degree Of Protection Ip
IP20
General Direct Current Dc Output Voltage
12 V
General Housing Material
Polycarbonate
General Maximum Operating Temperature
71 ºC
General Maximum Relative Humidity Rh
95 %
General Maximum Transport Storage Temperature
-40 ºC
General Minimum Operating Temperature
-40 ºC
General Minimum Relative Humidity Rh
20 %
General Minimum Transport Storage Temperature
85 ºC
General Model
Wipos P1 12-5
General Modular Version
Yes
General Nominal Alternating Current Ac Input Voltage
85 to 264 V
General Nominal Direct Current Dc Input Voltage
90 to 375 V
General Number Of Phases
Single Phase Power Supply
General Other Mounting Type
No
General Parallel Service Possible
No
General Power
60 W
General Rail Mounting Possible
Yes
General Wall Mounting Type
No
Input Maximum Input Voltage
264 V
Input Minimum Input Voltage
90 V
Input Primary Voltage Range
90 V
Output Output Voltage
12 V
Output Output Voltage Stabilized
Yes
Output Power Output
60 W
Output Type Of Output Voltage
Direct Current (DC)
Technical Data Direct Current Dc Output Isolating Voltage
4242 V
