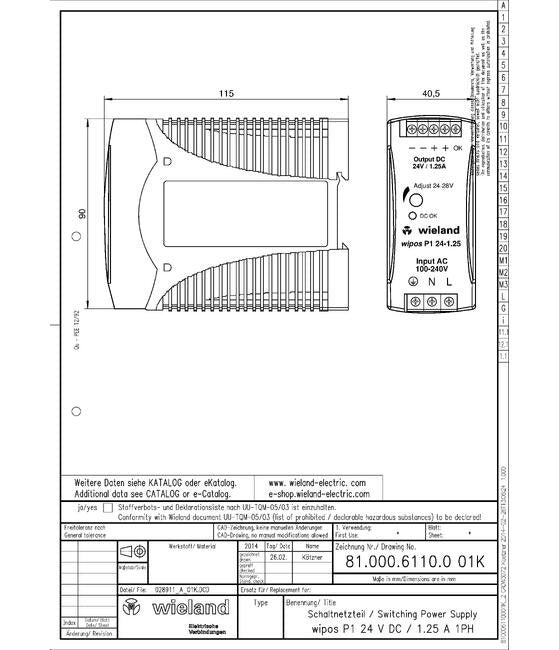

The Wieland Wipos P1 24-1.25 Basic Line Power Supply is a reliable solution for various applications. It offers a nominal voltage of 24V DC with a setting range of 24-28V DC, sustained short-circuit protection, and an input voltage range of 85-264V AC/90-375V DC. With a compact design (40.5 x 88.5 x 115 mm), screw connection, and single-phase power supply, this power supply is versatile and efficient. Additionally, it complies with RoHS and REACH-SVHC standards, ensuring environmental sustainability and quality performance.
Product Specifications
Classification Eclass 81 Classification
27049002
Classification Etim 50 Classification
EC002540
Classification Etim 60 Classification
EC002540
Classification Etim 70 Classification
EC002540
Dimensions Depth
115 mm
Dimensions Height
90 mm
Dimensions Horizontal Mounting Distance
25 mm
Dimensions Vertical Mounting Distance
25 mm
Dimensions Weight
290 g
Dimensions Width
40.5 mm
General Brands
Wieland
General Connection Type
Screw Connection
General Continuous Current
1.25 A
General Degree Of Protection Ip
IP20
General Direct Current Dc Output Voltage
24 V
General Housing Material
Polycarbonate
General Maximum Operating Temperature
71 ºC
General Maximum Relative Humidity Rh
95 %
General Maximum Transport Storage Temperature
-40 ºC
General Minimum Operating Temperature
-40 ºC
General Minimum Relative Humidity Rh
20 %
General Minimum Transport Storage Temperature
85 ºC
General Model
Wipos P1 24-1.25
General Modular Version
No
General Nominal Alternating Current Ac Input Voltage
85 to 264 V
General Nominal Direct Current Dc Input Voltage
90 to 375 V
General Power
35 W
Input Maximum Alternating Current Ac Input Voltage
264 V
Input Maximum Direct Current Dc Input Voltage
375 V
Input Minimum Alternating Current Ac Input Voltage
85 V
Input Minimum Direct Current Dc Input Voltage
90 V
Input Power Consumption
< 42 V·A
Output Maximum Output Voltage
28 V
Output Minimum Output Voltage
24 V
Output Output Voltage
24 V
Output Output Voltage Stabilized
Yes
Output Power Output
35 W
Output Type Of Output Voltage
Direct Current (DC)
Technical Data Direct Current Dc Output Isolating Voltage
4242 V
Technical Data Ok Port Switch Voltage At U Out
< 19.2 V
