Wieland WK 10/SI U 5X20/V0 Fuse Terminal Block
Wieland WK 10/SI U 5X20/V0 Fuse Terminal Block
SKU:DIN-fc3660
High-quality Wieland WK 10/SI U 5X20/V0 Fuse Terminal Block with 10A rated current, 500V max voltage, V0 inflammability class, and DIN rail mount.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Wieland WK 10/SI U 5X20/V0 Fuse Terminal Block
$24.99
Quantity: 1
Claim Your Seller Account
Wieland WK 10/SI U 5X20/V0 Fuse Terminal Block
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

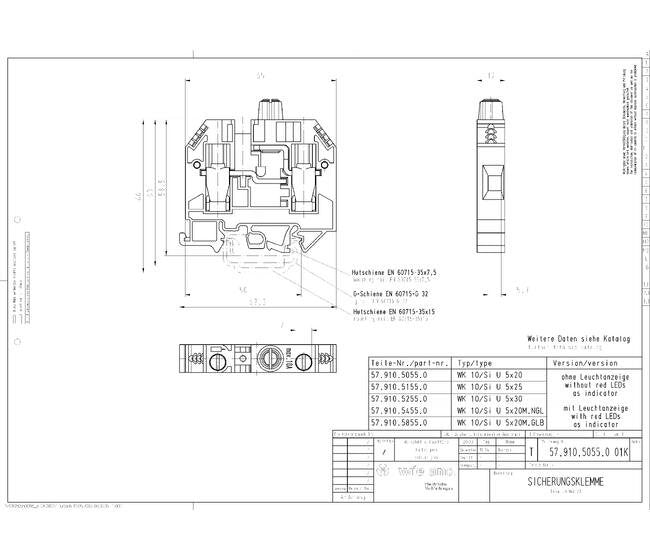

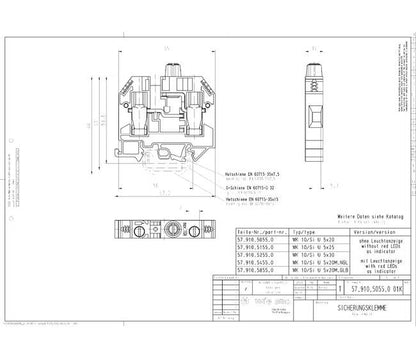

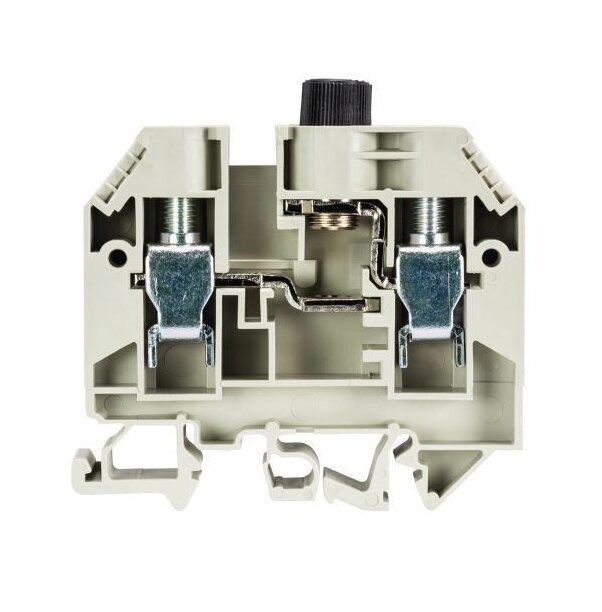

The Wieland WK 10/SI U 5X20/V0 Fuse Terminal Block is a high-quality DIN rail terminal block designed for secure electrical installations. Featuring a screw connection for easy mounting on TS 35 and TS 32, this terminal block is built with a 10 mm² nominal cross-section, G-Fuse insert size of 5 x 20 mm, and a 10A rated current capacity. With a maximum rated voltage of 500V and compliance with V0 inflammability class per UL94 standards, this gray terminal block ensures reliable performance and safety in industrial settings. Its compact design, at 65mm length and 12mm width, combined with PA666 insulating housing, make it a versatile solution for various applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Classification Eclass 81 Classification
27141116
Classification Etim 30 Classification
EC000899
Classification Etim 40 Classification
EC000899
Classification Etim 50 Classification
EC000899
Classification Etim 60 Classification
EC000899
Classification Etim 70 Classification
EC000899
Connection Data Connection Type 1
Screw Connection
Connection Data Connection Type 2
Screw Connection
Connection Data Maximum Fine Stranded Cross Section
10 mm²
Connection Data Maximum Solid Cross Section
10 mm²
Connection Data Maximum Stranded Cross Section
16 mm²
Connection Data Minimum Fine Stranded Cross Section
1 mm²
Connection Data Minimum Solid Cross Section
1 mm²
Connection Data Minimum Stranded Cross Section
16 mm²
Connection Data Wire Strip Length
13 mm
General Brands
Wieland
General Color
Gray
General Inflammability Class Of Insulation Material According Wi
V0
General Insulating Housing
PA666
General Model
WK 10/SI U 5 X 20 /V0
General Mounting Method
DIN Rail (Top Hat Rail) | G-Rail
General Nominal Cross Section
10 mm²
General Number Of Levels
1
General Terminal Blocks For Electrical Installations
No
General Width Grid Dimension
12 mm
Note Remark To Maximum Rated Voltage
Note fuse insert
Note Remark To Rated Current
Note Fuse Insert
Product Compliance Reach Svhc Conformity Status
Duty-To-Declare
Technical Data Closing Plate Required
Yes
Technical Data Fuse Insert
G-Fuse
Technical Data Fuse Insert Size
5 x 20 mm
Technical Data Length
65 mm
Technical Data Maximum Rated Voltage
500 V
Technical Data Pollution Degree
3
Technical Data Rated Current
10 A
Technical Data Rated Impulse Voltage
6 kV
Technical Data Type Of Insulation Material
Thermoplastic
Technical Data Ulcsa Cross Section Canadian Standards Associatio
16-6 AWG
Technical Data Ulcsa Cross Section Underwriters Laboratories Ul
22-6 AWG
Technical Data Ulcsa Voltage Canadian Standards Association Csa
600 V
