Wieland WK 10/SI U 6 DIN Rail Fuse Terminal Block
Wieland WK 10/SI U 6 DIN Rail Fuse Terminal Block
SKU:DIN-85db7d
Reliable Wieland WK 10/SI U 6 Fuse Terminal Block for secure electrical connections on DIN rails. Rated 10A, 500V with screw connections.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Wieland WK 10/SI U 6 DIN Rail Fuse Terminal Block
$24.99
Quantity: 1
Claim Your Seller Account
Wieland WK 10/SI U 6 DIN Rail Fuse Terminal Block
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

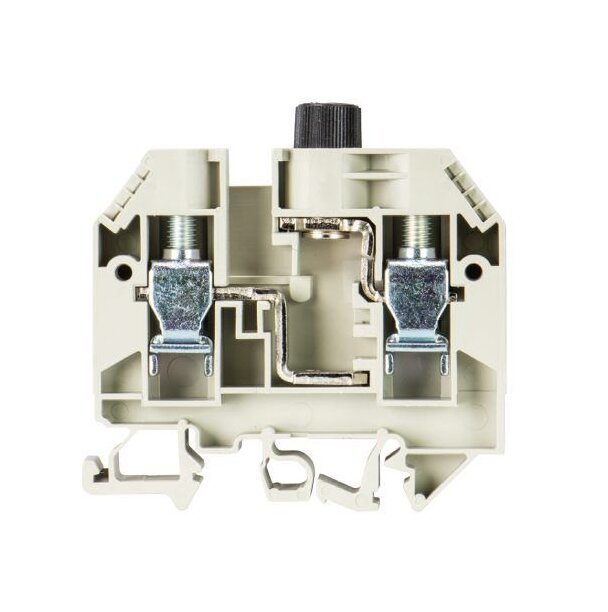

The Wieland WK 10/SI U 6 Fuse Terminal Block is a high-quality, gray-colored terminal block suitable for electrical installations requiring a nominal cross-section of 10mm². It features a G-Fuse insert with a size of 6.3 x 32 mm, rated for a maximum voltage of 500V and a current of 10A. This terminal block, with screw connections for easy installation on TS 35 and TS 32 rails, ensures reliable electrical connections and is made of PA666 insulating housing material with V0 inflammability class, meeting stringent industry standards for safety and performance.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Classification Eclass 81 Classification
27141116
Classification Etim 30 Classification
EC000899
Classification Etim 40 Classification
EC000899
Classification Etim 50 Classification
EC000899
Classification Etim 60 Classification
EC000899
Classification Etim 70 Classification
EC000899
Connection Data Connection Type 1
Screw Connection
Connection Data Connection Type 2
Screw Connection
Connection Data Maximum Fine Stranded Cross Section
10 mm²
Connection Data Maximum Solid Cross Section
10 mm²
Connection Data Maximum Stranded Cross Section
16 mm²
Connection Data Minimum Fine Stranded Cross Section
1 mm²
Connection Data Minimum Solid Cross Section
1 mm²
Connection Data Minimum Stranded Cross Section
16 mm²
Connection Data Wire Strip Length
13 mm
General Brands
Wieland
General Color
Gray
General Inflammability Class Of Insulation Material According Wi
V0
General Insulating Housing
PA666
General Model
WK 10/SI U 6
General Mounting Method
DIN Rail (Top Hat Rail) | G-Rail
General Nominal Cross Section
10 mm²
General Number Of Levels
1
General Terminal Blocks For Electrical Installations
No
General Width Grid Dimension
12 mm
Note Remark To Maximum Rated Voltage
Note fuse insert
Note Remark To Rated Current
Note Fuse Insert
Product Compliance Reach Svhc Cas Numbers
7439-92-1
Product Compliance Reach Svhc Conformity Status
Duty-To-Declare
Product Compliance Reach Svhc Substances
Lead
Product Compliance Rohs Conformity Status
Compliant/Exempted
Product Compliance Rohs Exceptions
III-6(c)
Technical Data Closing Plate Required
Yes
Technical Data Fuse Insert
G-Fuse
Technical Data Fuse Insert Size
6.3 x 32 mm
Technical Data Length
65 mm
Technical Data Maximum Rated Voltage
500 V
Technical Data Rated Impulse Voltage
6 kV
Technical Data Type Of Insulation Material
Thermoplastic
Technical Data Ulcsa Voltage Canadian Standards Association Csa
600 V
