Wieland WK 2.5/U Feed-Through Terminal Block - DIN Rail Mount, Blue
Wieland WK 2.5/U Feed-Through Terminal Block - DIN Rail Mount, Blue
SKU:DIN-f4b84c
Wieland WK 2.5/U Feed-Through Terminal Block - High performance, secure connections, DIN rail mount
Regular price
$12.99
Regular price
Sale price
$12.99
Unit price
per
Initiate Order
Wieland WK 2.5/U Feed-Through Terminal Block - DIN Rail Mount, Blue
$12.99
Quantity: 1
Claim Your Seller Account
Wieland WK 2.5/U Feed-Through Terminal Block - DIN Rail Mount, Blue
$12.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

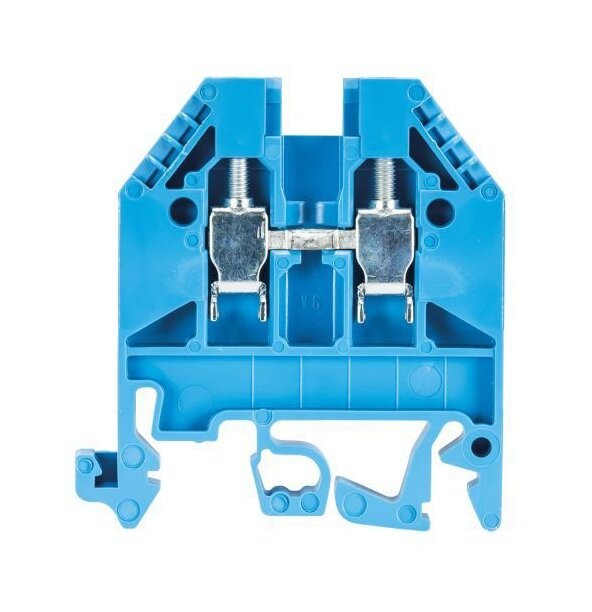

The Wieland WK 2.5/U BL/V0 Feed-Through Terminal Block is a high-performance electrical accessory designed for reliable and secure connections in industrial environments. This terminal block features a 2.5 mm² nominal cross-section, capable of handling up to 24A of rated current and 1000V maximum rated voltage. Its V0 inflammability class insulation material ensures safety compliance, along with RoHS and REACH-SVHC conformity. With screw connections and DIN rail mounting compatibility, this terminal block offers ease of installation and maintenance in electrical installations.
Product Specifications
Classification Eclass 81 Classification
27141120
Classification Etim 40 Classification
EC000897
Classification Etim 50 Classification
EC000897
Classification Etim 60 Classification
EC000897
Classification Etim 70 Classification
EC000897
Connection Data Connection Type 1
Screw Connection
Connection Data Connection Type 2
Screw Connection
Connection Data Maximum Fine Stranded Cross Section
2.5 mm²
Connection Data Maximum Solid Cross Section
4 mm²
Connection Data Minimum Fine Stranded Cross Section
0.5 mm²
Connection Data Minimum Solid Cross Section
0.5 mm²
Connection Data Wire Strip Length
9 mm
General Brands
Wieland
General Color
Blue
General Explosion Tested Version Ex E
Yes
General Inflammability Class Of Insulation Material According Wi
V0
General Insulating Housing
PA666
General Model
WK 2,5/U BL/V0
General Mounting Method
DIN Rail (Top Hat Rail) | G-Rail
General Nominal Cross Section
2.5 mm²
General Number Of Clamp Positions Per Level
2
General Number Of Levels
1
General Terminal Blocks For Electrical Installations
Yes
General Width Grid Dimension
5 mm
Product Compliance Reach Svhc Conformity Status
Compliant
Product Compliance Rohs Conformity Status
Compliant
Technical Data Closing Plate Required
Yes
Technical Data Length
44.5 mm
Technical Data Maximum Rated Voltage
1000 V
Technical Data Pollution Degree
3
Technical Data Rated Current
24 A
Technical Data Rated Impulse Voltage
8 kV
Technical Data Type Of Insulation Material
Thermoplastic
Technical Data Ulcsa Cross Section Canadian Standards Associatio
24-12 AWG
Technical Data Ulcsa Cross Section Underwriters Laboratories Ul
22-12 AWG
Technical Data Ulcsa Current Canadian Standards Association Csa
25 A
Technical Data Ulcsa Factory Wiring Current
30 A
Technical Data Ulcsa Field Wiring Current
20 A
Technical Data Ulcsa Voltage Canadian Standards Association Csa
600 V
Technical Data Ulcsa Voltage Underwriters Laboratories Ul
600 V
