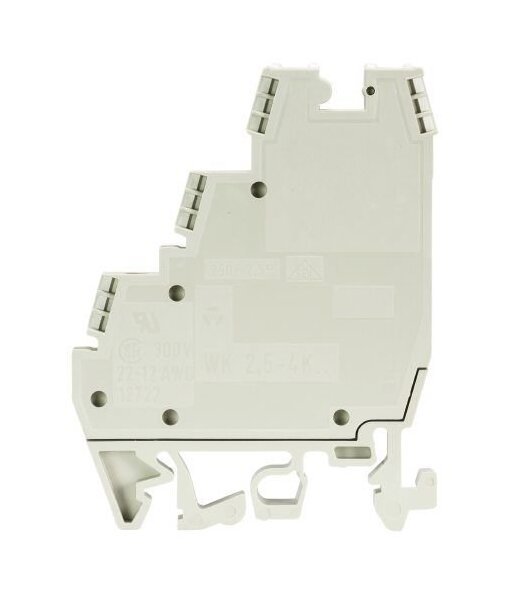

Wieland WK 2 Initiator Terminal Block
Wieland WK 2 Initiator Terminal Block
Secure and reliable Wieland WK 2 Initiator Terminal Block for efficient power distribution. Compliant with RoHS and REACH-SVHC standards.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Wieland WK 2 Initiator Terminal Block
$29.99
Quantity: 1
Claim Your Seller Account
Wieland WK 2 Initiator Terminal Block
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wieland WK 2 Initiator Terminal Block is a high-quality solution designed for secure electrical installations. Featuring a robust PA666 insulating housing and V0 inflammability class per UL94 standards, this terminal block ensures safety and reliability. With a rated current of 25 A and a maximum rated voltage of 250 V, it provides efficient power distribution. The screw connections and versatile mounting options on DIN Rail make installation easy. Compliant with RoHS and REACH-SVHC standards, this terminal block meets key environmental regulations.
Product Specifications
Classification Eclass 81 Classification
27141128
Classification Etim 30 Classification
EC000900
Classification Etim 40 Classification
EC000900
Classification Etim 50 Classification
EC000900
Classification Etim 60 Classification
EC000900
Classification Etim 70 Classification
EC000900
Connection Data Connection Type 1
Screw Connection
Connection Data Connection Type 2
Screw Connection
Connection Data Maximum Fine Stranded Cross Section
2.5 mm²
Connection Data Maximum Solid Cross Section
4 mm²
Connection Data Minimum Fine Stranded Cross Section
0.5 mm²
Connection Data Minimum Solid Cross Section
0.5 mm²
Connection Data Torque Conductor Mounting
0.4 N·m
Connection Data Wire Strip Length
7 mm
General Brands
Wieland
General Color
Gray
General Inflammability Class Of Insulation Material According Wi
V0
General Insulating Housing
PA666
General Model
WK 2, 5-4 KI/U/V0
General Mounting Method
DIN Rail (Top Hat Rail) | G-Rail
General Nominal Cross Section
2.5 mm²
General Number Of Clamp Positions Per Level
1
General Number Of Levels
3
General Terminal Blocks For Electrical Installations
No
General Width Grid Dimension
6 mm
Note Display
None
Note Power Supply Function
No
Product Compliance Reach Svhc Cas Numbers
7439-92-1
Product Compliance Reach Svhc Conformity Status
Duty-To-Declare
Product Compliance Reach Svhc Substances
Lead
Product Compliance Rohs Conformity Status
Compliant/Exempted
Product Compliance Rohs Exceptions
III-6(c)
Technical Data Closing Plate Required
No
Technical Data Length
53.4 mm
Technical Data Maximum Rated Voltage
250 V
Technical Data Pollution Degree
3
Technical Data Rated Impulse Voltage
4 kV
Technical Data Type Of Insulation Material
Thermoplastic
Technical Data Ulcsa Voltage Canadian Standards Association Csa
300 V
Technical Data Ulcsa Voltage Underwriters Laboratories Ul
300 V
