Wieland WK 4/D E U/V0 Multi-Tier Terminal Block
Wieland WK 4/D E U/V0 Multi-Tier Terminal Block
SKU:DIN-cfd879
High-quality DIN Rail Terminal Block with secure screw connections, 4mm² cross section, and V0 flame resistance for industrial use.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Wieland WK 4/D E U/V0 Multi-Tier Terminal Block
$39.99
Quantity: 1
Claim Your Seller Account
Wieland WK 4/D E U/V0 Multi-Tier Terminal Block
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

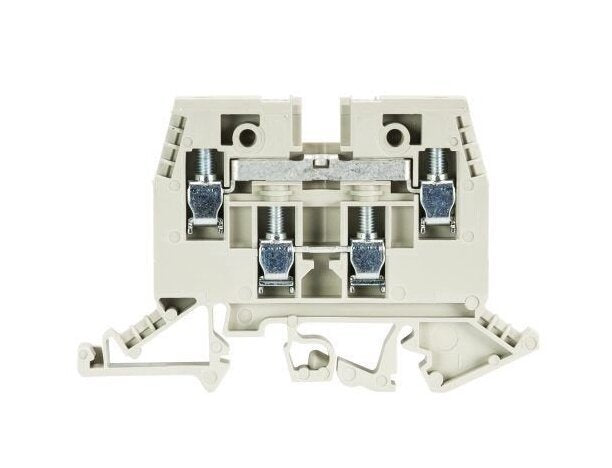

The Wieland WK 4/D E U/V0 Multi-Tier Terminal Block is a premium solution for organized electrical connections in industrial settings. This DIN Rail Terminal Block features a screw connection for secure mounting on TS 35 and TS 32 rails. With a nominal cross section of 4 mm², 2 levels, and 2 clamp positions per level, this terminal block ensures reliable electrical connections. The gray color and compact 6mm width make it suitable for diverse applications. Meeting strict industry standards, this terminal block is rated for 32A current, 320V maximum voltage, and V0 flame resistance per UL94 standards.
Product Specifications
Classification Eclass 81 Classification
27141120
Classification Etim 30 Classification
EC000897
Classification Etim 40 Classification
EC000897
Classification Etim 50 Classification
EC000897
Classification Etim 60 Classification
EC000897
Classification Etim 70 Classification
EC000897
Connection Data Connection Type 1
Screw Connection
Connection Data Connection Type 2
Screw Connection
Connection Data Maximum Fine Stranded Connection Cross Section
4 mm²
Connection Data Maximum Solid Cross Section
6 mm²
Connection Data Minimum Fine Stranded Connection Cross Section
0.5 mm²
Connection Data Minimum Solid Cross Section
0.5 mm²
Connection Data Torque Conductor Mounting
0.5 N·m
Connection Data Wire Strip Length
9 mm
General Color
Gray
General Explosion Tested Version Ex E
Yes
General Inflammability Class Of Insulation Material According Wi
V0
General Insulating Housing
PA666
General Mounting Method
DIN Rail (Top Hat Rail) | G-Rail
General Nominal Cross Section
4 mm²
General Number Of Clamp Positions Per Level
2
General Number Of Levels
2
General Terminal Blocks For Electrical Installations
Yes
General Width Grid Dimension
6 mm
Note Remark To Maximum Rated Voltage
500V/6kV/3 with Separating Plate
Product Compliance Reach Svhc Conformity Status
Compliant
Technical Data Closing Plate Required
Yes
Technical Data Length
77 mm
Technical Data Maximum Rated Voltage
320 V
Technical Data Pollution Degree
3
Technical Data Rated Current
32 A
Technical Data Rated Impulse Voltage
4 kV
Technical Data Type Of Insulation Material
Thermoplastic
Technical Data Ulcsa Cross Section Canadian Standards Associatio
22-12 AWG
Technical Data Ulcsa Cross Section Underwriters Laboratories Ul
22-12 AWG
Technical Data Ulcsa Current Canadian Standards Association Csa
30 A
Technical Data Ulcsa Current Factory Wiring
30 A
Technical Data Ulcsa Voltage Canadian Standards Association Csa
600 V
Technical Data Ulcsa Voltage Underwriters Laboratories Ul
300 V
