Wieland WK 4/D2/2SLU /V0 Earth Terminal Block for DIN Rail
Wieland WK 4/D2/2SLU /V0 Earth Terminal Block for DIN Rail
SKU:DIN-739266
Securely ground electrical installations with the Wieland Earth Terminal Block. DIN rail mounted, 4 mm² cross section, V0 inflammability class, and explosion-tested for safety.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Wieland WK 4/D2/2SLU /V0 Earth Terminal Block for DIN Rail
$24.99
Quantity: 1
Claim Your Seller Account
Wieland WK 4/D2/2SLU /V0 Earth Terminal Block for DIN Rail
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

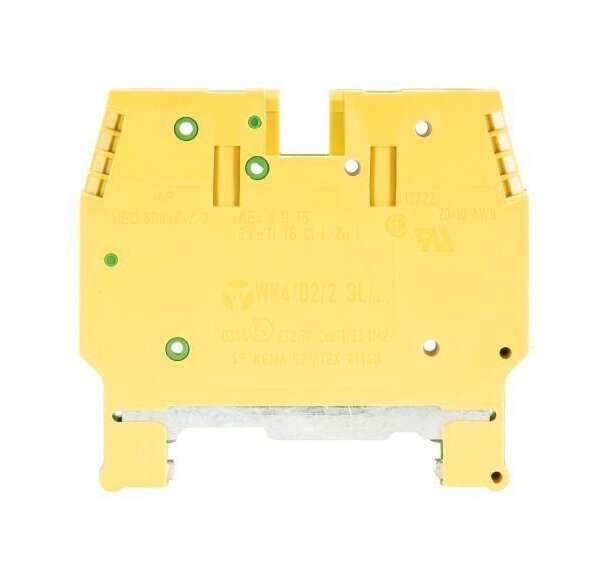

The Wieland WK 4/D2/2SLU /V0 Earth Terminal Block is a reliable solution for grounding in electrical installations. With a nominal cross section of 4 mm² and screw connections for secure mounting on TS 35 and TS 32, this terminal block ensures stability and safety. The green/yellow color coding is easily identifiable for proper wiring. It meets various technical standards like a V0 inflammability class, UL94 insulation standard, and is explosion-tested for added safety. With a width of 6 mm and a high-quality insulating housing made of PA666, this terminal block is durable and suitable for industrial applications.
Product Specifications
Classification Eclass 81 Classification
27141141
Classification Etim 30 Classification
EC000901
Classification Etim 40 Classification
EC000901
Classification Etim 50 Classification
EC000901
Classification Etim 60 Classification
EC000901
Classification Etim 70 Classification
EC000901
Connection Data Connection Type 1
Screw Connection
Connection Data Connection Type 2
Screw Connection
Connection Data Maximum Fine Stranded Cross Section
4 mm²
Connection Data Maximum Solid Cross Section
6 mm²
Connection Data Minimum Fine Stranded Cross Section
0.5 mm²
Connection Data Minimum Solid Cross Section
0.5 mm²
Connection Data Torque Conductor Mounting
0.5 N·m
Connection Data Torque Rail Mounting
0.5 N·m
Connection Data Wire Strip Length
9 mm
General Brands
Wieland
General Color
Green/Yellow
General Explosion Tested Version Ex E
Yes
General Inflammability Class Of Insulation Material According Wi
V0
General Insulating Housing
PA666
General Model
WK 4/D2/2SLU /V0
General Mounting Method
TS35
General Nominal Cross Section
4 mm²
General Number Of Clamp Positions Per Level
4
General Number Of Levels
1
General Terminal Blocks For Electrical Installations
Yes
General Width Grid Dimension
6 mm
Product Compliance Reach Svhc Cas Numbers
7439-92-1
Product Compliance Reach Svhc Conformity Status
Duty-To-Declare
Product Compliance Reach Svhc Substances
Lead
Product Compliance Rohs Conformity Status
Compliant with Exceptions
Product Compliance Rohs Exceptions
III-6(c)
Technical Data Closing Plate Required
No
Technical Data Length
55.6 mm
Technical Data Pollution Degree
3
Technical Data Rated Impulse Voltage
6 kV
Technical Data Type Of Insulation Material
Thermoplastic
Technical Data Ulcsa Cross Section Canadian Standards Associatio
20-12 AWG
Technical Data Ulcsa Cross Section Underwriters Laboratories Ul
22-10 AWG
