Wieland WK 4 Knife Disconnect Terminal Block
Wieland WK 4 Knife Disconnect Terminal Block
SKU:DIN-b9dbde
High-performance Wieland WK 4 Terminal Block for secure electrical connections on DIN Rails. Nominal cross-section of 4mm², V0 inflammability class, rated for 20A/400V.
Regular price
$15.99
Regular price
Sale price
$15.99
Unit price
per
Initiate Order
Wieland WK 4 Knife Disconnect Terminal Block
$15.99
Quantity: 1
Claim Your Seller Account
Wieland WK 4 Knife Disconnect Terminal Block
$15.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

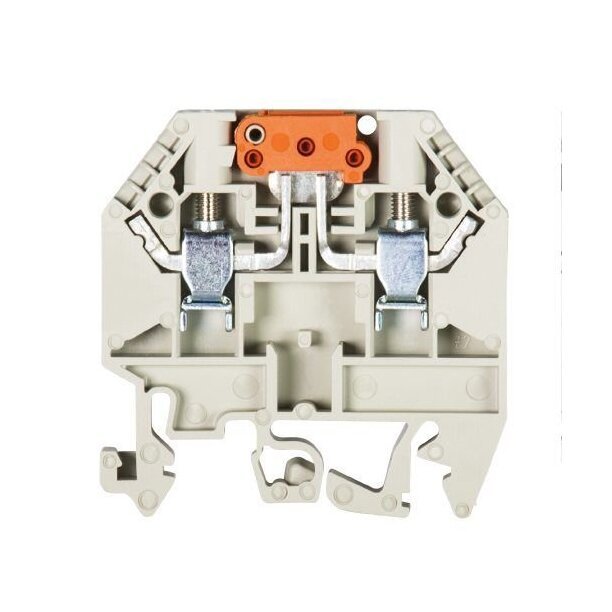

The Wieland WK 4 TKM P3/U/V0 Knife Disconnect Terminal Block is a top-quality terminal block designed for high-performance electrical installations. With a nominal cross-section of 4 mm², it offers reliable screw connections, ensuring secure mounting on DIN Rails. This gray terminal block meets stringent industry standards, including a V0 inflammability class, making it ideal for diverse applications. Rated for 20 A and 400 V, with a rated impulse voltage of 4 kV, it guarantees efficient electrical connectivity. Additionally, its thermoplastic insulation and PA666 housing enhance durability and safety, while its compact design at 48mm length facilitates easy installation.
Product Specifications
Classification Eclass 81 Classification
27141126
Classification Etim 30 Classification
EC000902
Classification Etim 40 Classification
EC000902
Classification Etim 50 Classification
EC000902
Classification Etim 60 Classification
EC000902
Classification Etim 70 Classification
EC000902
Connection Data Connection Type 1
Screw Connection
Connection Data Connection Type 2
Screw Connection
Connection Data Maximum Fine Stranded Cross Section
4 mm²
Connection Data Maximum Solid Cross Section
6 mm²
Connection Data Minimum Fine Stranded Cross Section
0.5 mm²
Connection Data Minimum Solid Cross Section
0.5 mm²
Connection Data Wire Strip Length
9 mm
General Brands
Wieland
General Color
Gray
General Inflammability Class Of Insulation Material According Wi
V0
General Insulating Housing
PA666
General Model
WK 4 TKM P3/U/V0
General Mounting Method
DIN Rail (Top Hat Rail) | G-Rail
General Nominal Cross Section
4 mm²
General Number Of Clamp Positions Per Level
2
General Number Of Levels
1
General Terminal Blocks For Electrical Installations
No
General Width Grid Dimension
6 mm
Note Integrated Test Socket
Yes
Product Compliance Reach Svhc Cas Numbers
7439-92-1
Product Compliance Reach Svhc Conformity Status
Duty-To-Declare
Product Compliance Reach Svhc Substances
Lead
Product Compliance Rohs Conformity Status
Compliant with Exceptions
Product Compliance Rohs Exceptions
III-6(c)
Technical Data Closing Plate Required
Yes
Technical Data Length
48 mm
Technical Data Maximum Rated Voltage
400 V
Technical Data Pollution Degree
3
Technical Data Rated Current
20 A
Technical Data Rated Impulse Voltage
4 kV
Technical Data Type Of Insulation Material
Thermoplastic
Technical Data Ulcsa Cross Section Canadian Standards Associatio
22-10 AWG
Technical Data Ulcsa Voltage Canadian Standards Association Csa
300 V
Technical Data Ulcsa Voltage Underwriters Laboratories Ul
600 V
